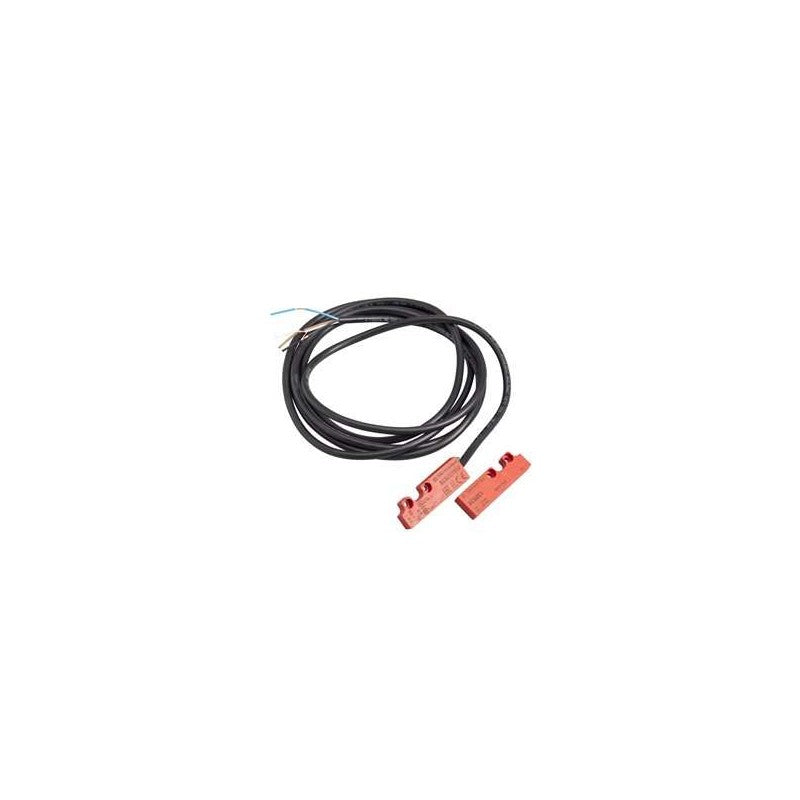

The Schneider Electric XCSDMC series coded magnetic switch is designed for safety applications requiring reliable detection of guard or door positions. This specific model, the XCSDMC79110, features 2 NC (Normally Closed) contacts and a staggered sensor arrangement, suitable for applications where precise alignment and tamper resistance are critical. It is commonly integrated into machine guarding systems on production lines to ensure safe operation.

Technical details

• Series: XCSDMC Coded Magnetic Switches
• Contact Configuration: 2 NC (Normally Closed)
• Actuator Type: Coded Magnetic
• Sensing Distance: 10 meters (cable length)
• Switching Principle: Reed switch technology activated by a specific magnetic key
• Enclosure Material: Durable plastic housing for industrial environments
• Operating Principle: Non-contact detection, immune to dust and minor misalignments
• Safety Function: Guard monitoring and interlocking

Applications & compatibility

This coded magnetic switch is ideal for safeguarding access points on machinery in various industrial sectors, including automotive manufacturing, food and beverage processing, and packaging. It is compatible with safety relays and controllers that accept NC contact inputs, ensuring that machinery stops when a guard is opened.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMC79110 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
