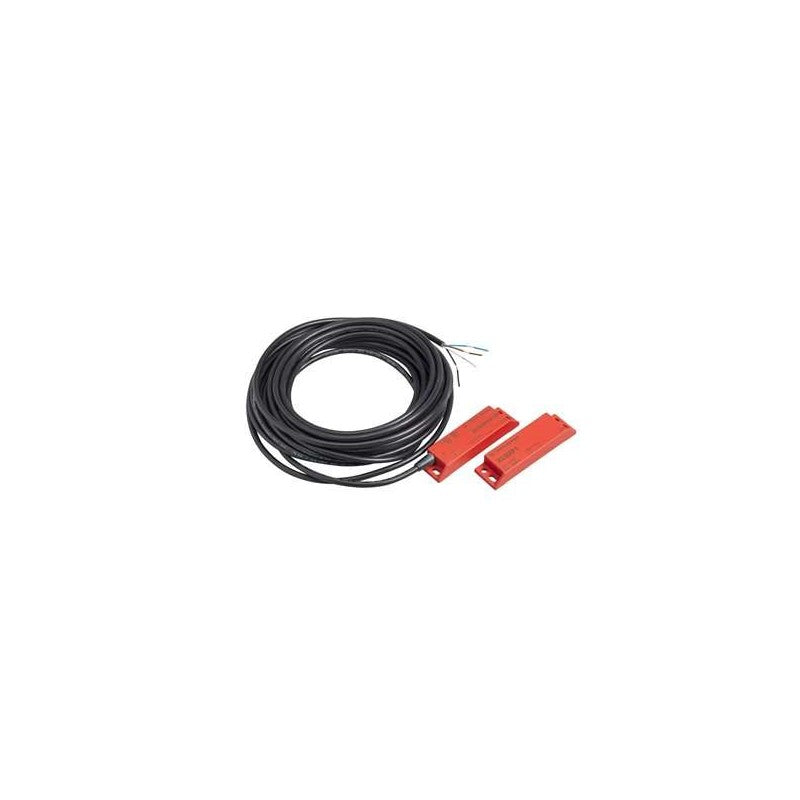

The Schneider Electric XCSDMP5015 is a coded magnetic safety switch designed for machine guarding applications. This switch is part of the XCS range, offering reliable detection of guard positions. It features a configuration of one normally closed (NC) safety contact and two normally open (NO) auxiliary contacts, with one NO contact staggered for specific interlocking requirements.

Technical details

• Series: XCS-DMP
• Contact Configuration: 1 NC (Normally Closed) safety contact, 2 NO (Normally Open) auxiliary contacts
• Staggered Contact: 1 NO contact is staggered for interlocking purposes
• Cable Length: 5 meters
• Actuator Type: Coded magnetic
• Switching Technology: Magnetic
• Operating Principle: Detects the presence and position of a coded magnetic actuator
• Safety Function: Guard monitoring and interlocking

Applications & compatibility

This coded magnetic safety switch is ideal for use on safety gates, access doors, and other movable machine guards in industrial environments. It is commonly integrated into safety circuits for packaging machinery, assembly lines, material handling systems, and robotic cells where reliable detection of guard status is critical for operator safety.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP5015 or contact our technical team for cross-reference assistance with compatible XCS series components.
