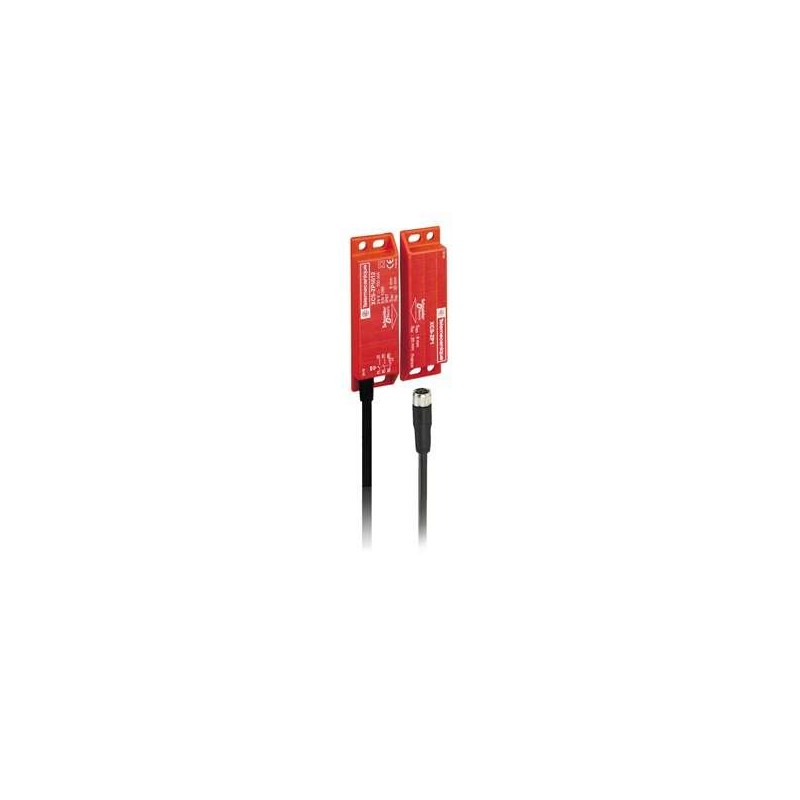

The Schneider Electric XCSDMP501L01M12 is a coded magnetic safety switch designed for robust machine safety applications. As part of the XCSDMP series, this switch offers a reliable solution for detecting the position of guard doors and other moving machine parts. Its construction ensures dependable operation in demanding industrial environments, contributing to overall workplace safety.

Technical details

• Series: XCSDMP
• Switch Type: Coded Magnetic Safety Switch
• Contact Configuration: 1 Normally Closed (NC) contact and 2 Normally Open (NO) contacts.
• Additional Contact: Features 1 NO contact that is staggered, providing an additional safety interlock option.
• Connection Type: M12 connector for electrical termination.
• Cable Length: Integrated cable length of 0.15 meters.
• Actuator Type: Requires a specific coded magnetic actuator (sold separately) for operation, preventing unauthorized bypass.
• Operating Principle: Utilizes magnetic force and unique coding to ensure tamper resistance and reliable detection.

Applications & compatibility

This coded magnetic safety switch is commonly deployed in applications requiring high levels of safety integrity, such as on packaging machinery, robotic cells, and automated assembly lines. It is designed to integrate seamlessly with safety relays and controllers to create comprehensive safety circuits, ensuring machinery stops when guards are opened.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP501L01M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
