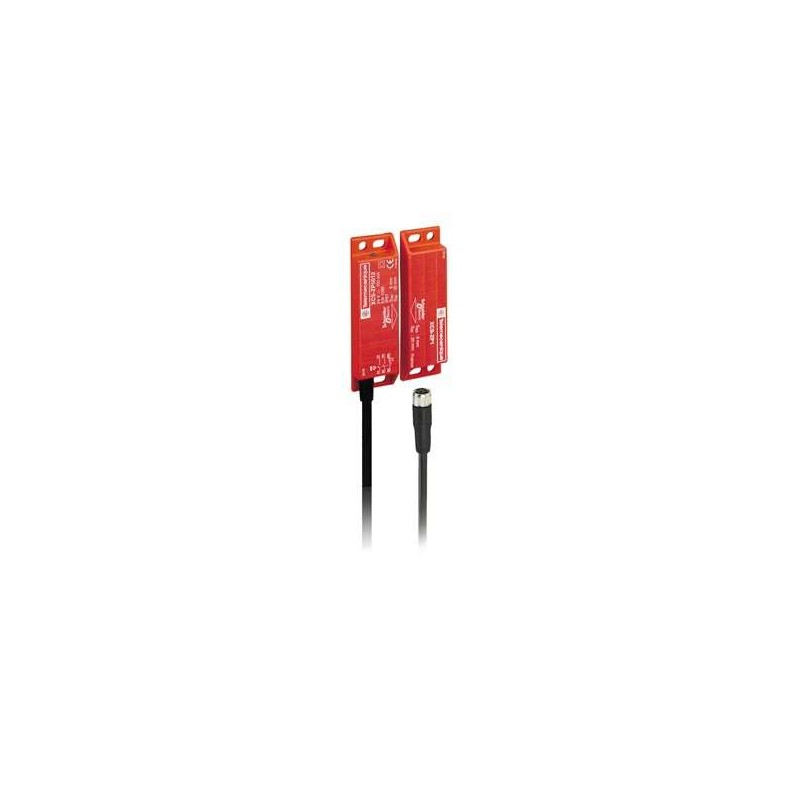

Part of the Schneider Electric XCS range, this coded magnetic safety switch is designed for machine guarding applications requiring reliable detection of guard position. The XCSDMP590L01M12 features a dual-contact configuration, providing one normally closed (NC) and one normally open (NO) contact for safety interlock circuits. Its staggered contact arrangement is specifically engineered to prevent bypassing of the switch.

Technical details

• Series: XCS
• Product Type: Coded Magnetic Safety Switch
• Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
• Actuator Type: Staggered
• Connection: M12 connector
• Cable Length: 0.15 meters (150mm)
• Switching Technology: Magnetic
• Operating Principle: Coded magnetic detection

Applications & compatibility

This safety switch is suitable for use on various industrial machinery where personnel safety is paramount, including packaging machines, assembly lines, and material handling equipment. It integrates into safety circuits to ensure machinery stops when a guard is opened, preventing hazardous operations. The M12 connection simplifies wiring and ensures a robust connection in demanding environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP590L01M12 or contact our technical team for cross-reference assistance with compatible XCS series components.
