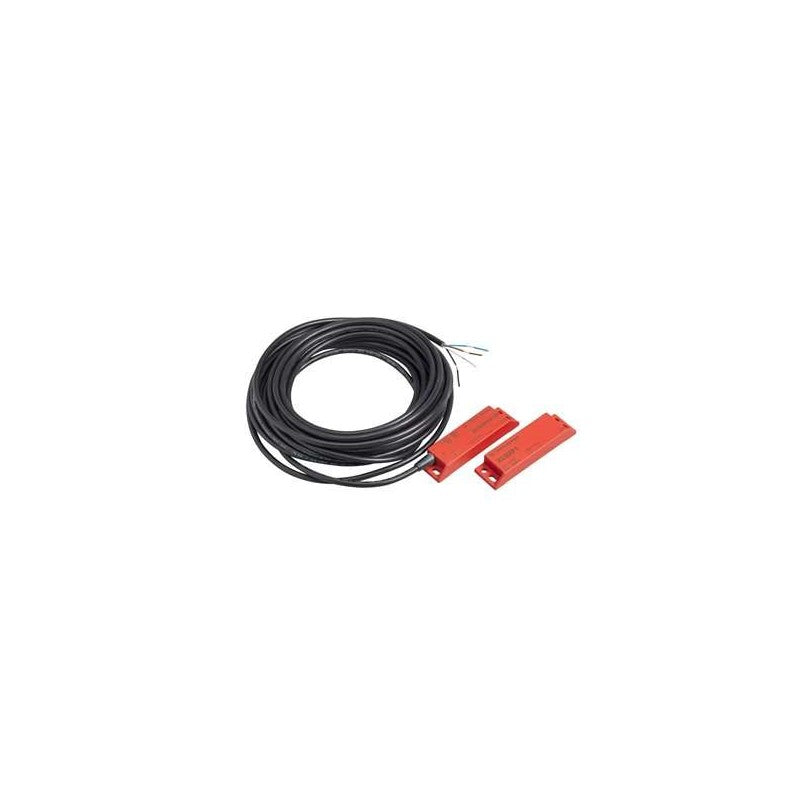

The Schneider Electric XCSDMP series coded magnetic switch is engineered for safety interlocking applications, providing reliable detection of guard positions. This specific model, the XCSDMP59110, features a staggered contact configuration with one normally closed (NC) and one normally open (NO) contact, designed to ensure a safe state when a guard is opened. Its robust construction is suitable for demanding industrial environments.

Technical details

• Series: XCSDMP Coded Magnetic Switches
• Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
• Contact Type: Staggered
• Actuator Type: Coded Magnetic
• Connection Cable Length: 10 meters
• Switching Technology: Reed switch with magnetic actuator
• Operating Principle: Non-contact detection of guard position
• Enclosure Material: Durable plastic

Applications & compatibility

This XCSDMP coded magnetic switch is commonly integrated into safety circuits for machine guarding on production lines, including packaging machinery, assembly stations, and material handling systems. It is designed to prevent machine operation when safety guards or doors are not in their secured position, ensuring operator safety and compliance with safety standards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP59110 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
