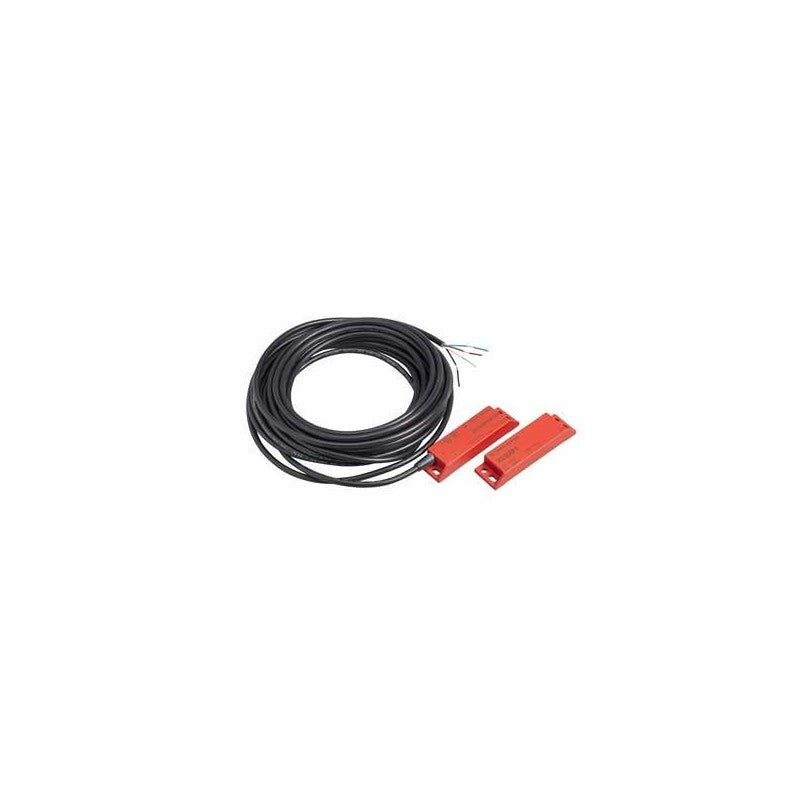

The Schneider Electric XCSDMP5912 is a coded magnetic safety switch designed for machine guarding applications. This switch features a staggered contact arrangement, providing one normally closed (NC) and one normally open (NO) contact. It is part of the XCS range of safety switches, commonly integrated into industrial automation systems requiring reliable safety interlocks.

Technical details

• Series: XCS
• Switch Type: Coded Magnetic Safety Switch
• Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
• Contact Arrangement: Staggered
• Cable Length: 2 meters
• Actuator Type: Magnetic (requires compatible magnetic actuator, sold separately)
• Operating Principle: Detects the presence and correct positioning of a guard via magnetic force and unique coding.
• Enclosure Material: Durable plastic, suitable for industrial environments.

Applications & compatibility

This safety switch is ideal for use on guard doors, access panels, and other movable machine parts in industries such as automotive manufacturing, food and beverage processing, and material handling. It is designed to be compatible with safety relays and controllers within the Schneider Electric Preventa safety automation range, ensuring a complete safety solution for packaging lines, CNC machinery, and conveyor systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP5912 or contact our technical team for cross-reference assistance with compatible XCS series components.
