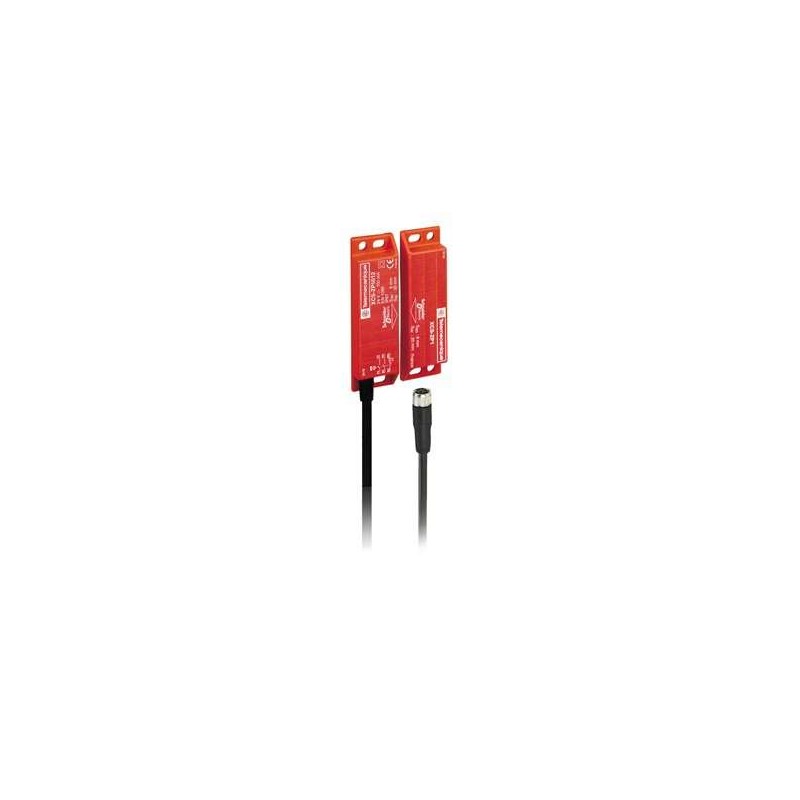

The Schneider Electric XCSDMP series coded magnetic safety switch is designed for robust machine guarding applications. This particular model, the XCSDMP591L01M12, features a 1 Normally Closed (NC) and 1 Normally Open (NO) contact configuration, ideal for safety interlock circuits requiring both immediate stop and diagnostic feedback. Its staggered contact arrangement ensures reliable operation in demanding industrial environments.

Technical details

• Series: XCSDMP Coded Magnetic Safety Switch
• Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
• Actuator Type: Staggered
• Connection Type: M12 connector
• Cable Length: 0.15 meters (150mm)
• Enclosure Rating: Not specified in provided information; consult manufacturer datasheet for IP/NEMA ratings.
• Operating Voltage: Not specified in provided information; consult manufacturer datasheet for electrical ratings.
• Switching Current: Not specified in provided information; consult manufacturer datasheet for current ratings.

Applications & compatibility

This XCSDMP safety switch is commonly employed in applications requiring reliable detection of guard or door position. It is suitable for use on packaging machinery, assembly lines, CNC equipment, and other automated systems where personnel safety is paramount. The M12 connection facilitates quick and secure integration into existing control systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP591L01M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
