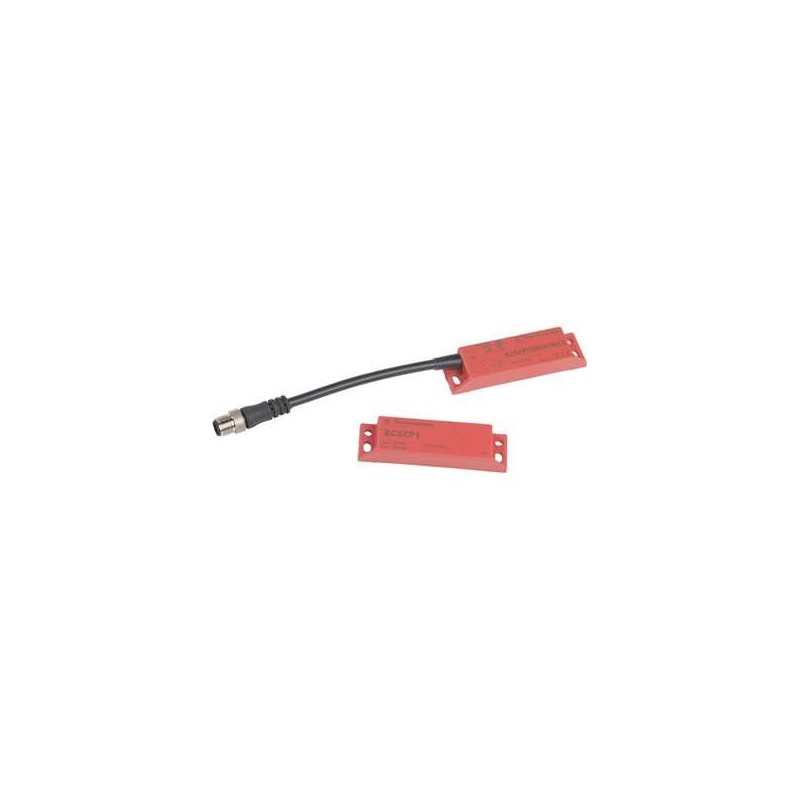

The Schneider Electric XCSDMP700L01M12 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCS range, this switch utilizes magnetic sensing technology to detect the position of guard doors or access points. It features a specific contact configuration of 2 Normally Closed (NC) and 1 Normally Open (NO) contacts, with one NC contact designed to be staggered for enhanced safety interlocking.

Technical details

• Series: XCS
• Switch Type: Coded Magnetic Safety Switch
• Contact Configuration: 2 NC + 1 NO
• Staggered Contact: 1 NC staggered
• Connection Type: M12 connector
• Cable Length: 0.15 meters
• Actuator Type: Magnetic (coded)
• Operating Principle: Detects magnetic field presence/absence for guard position monitoring.

Applications & compatibility

This coded magnetic safety switch is suitable for use on various industrial machinery where reliable guard monitoring is essential. Applications include packaging machines, material handling systems, assembly lines, and any equipment requiring safety interlocks to prevent operation when guards are open. It is designed to integrate with safety relays and controllers to ensure compliance with safety standards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP700L01M12 or contact our technical team for cross-reference assistance with compatible XCS series components.
