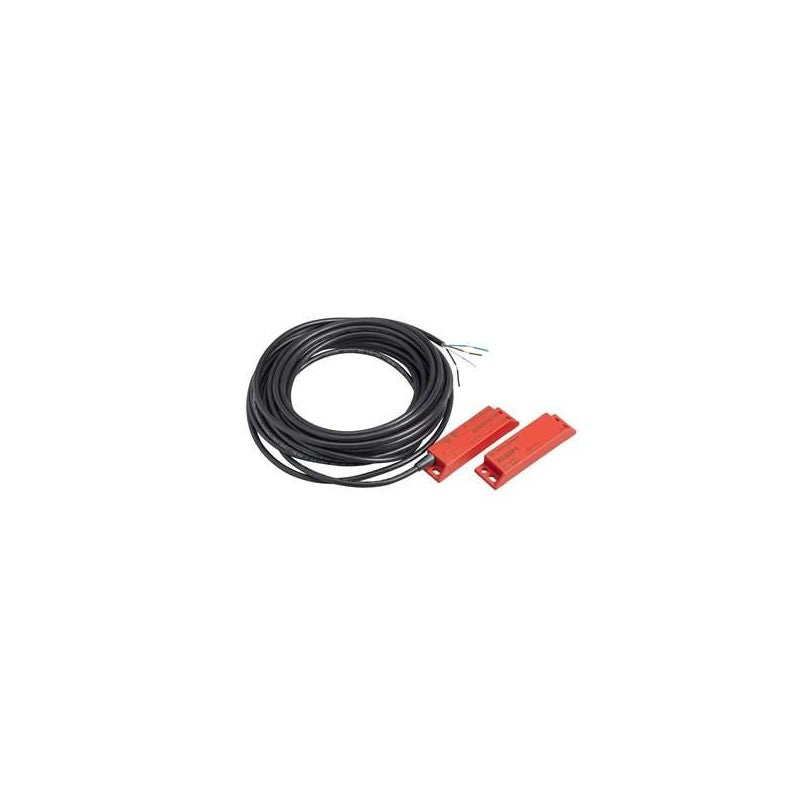

The Schneider Electric XCSDMP70110 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMP series, this switch utilizes magnetic sensing technology to detect the position of a guard or door. It features a configuration of 2 Normally Closed (NC) contacts and 1 Normally Open (NO) contact, with one NC contact specifically staggered for enhanced safety interlocking. This switch is intended for use in safety circuits where reliable detection of guard status is critical.

Technical details

• Series: XCSDMP
• Contact Configuration: 2 NC (Normally Closed) + 1 NO (Normally Open)
• Staggered Contact: 1 NC staggered
• Cable Length: 10 meters
• Switch Type: Coded Magnetic Safety Switch
• Actuation Method: Magnetic
• Operating Principle: Detects the presence of a magnetic actuator to determine guard position.
• Safety Function: Provides guard monitoring for safety-related control systems.

Applications & compatibility

This coded magnetic safety switch is commonly employed in industrial automation environments to monitor the position of safety guards on machinery. Typical applications include packaging lines, assembly machines, robotic cells, and any equipment where personnel safety requires reliable detection of access points. It is designed to integrate into safety circuits that require a specific actuator to be present for the machine to operate.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP70110 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
