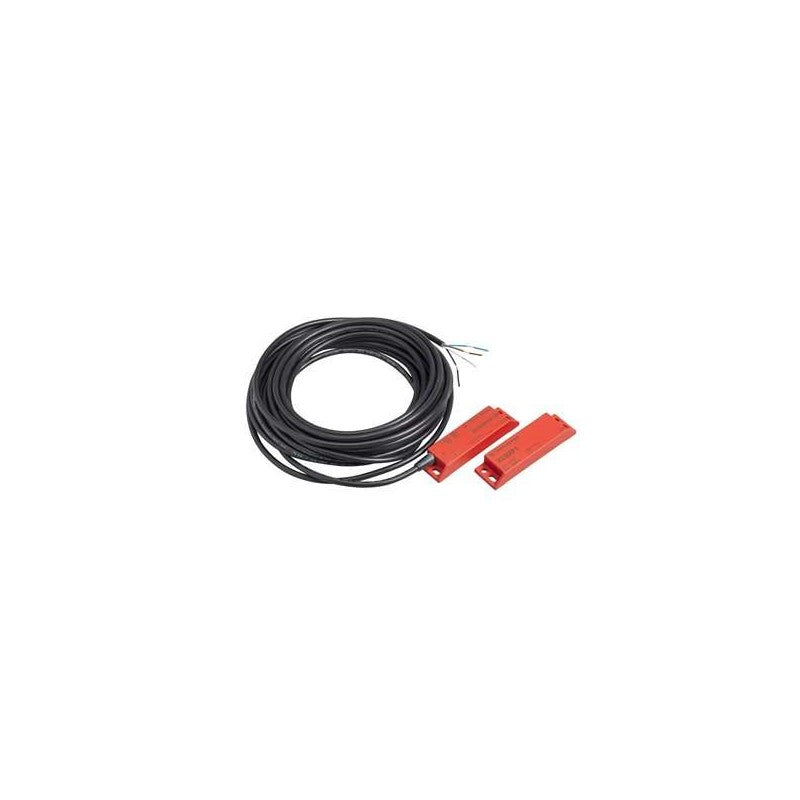

The Schneider Electric XCSDMP7012 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMP series, this switch features a robust construction suitable for demanding industrial environments. It provides essential safety interlocking functionality to prevent machinery operation when guards are open.

Technical details

• Series: XCSDMP
• Contact Configuration: 2 Normally Closed (NC) + 1 Normally Open (NO)
• Staggered Contact: 1 NC staggered
• Actuator Type: Coded Magnetic
• Cable Length: 2 meters
• Switching Technology: Magnetic
• Safety Function: Guard Interlocking
• Operating Principle: Utilizes a magnetic actuator and a coded switch to detect guard position, preventing unauthorized bypass.

Applications & compatibility

This safety switch is commonly employed in applications requiring reliable guard monitoring, such as on packaging machinery, robotic cells, and assembly lines. It is compatible with safety relays and controllers designed to interpret the NC and NO contact outputs for safe state detection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP7012 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
