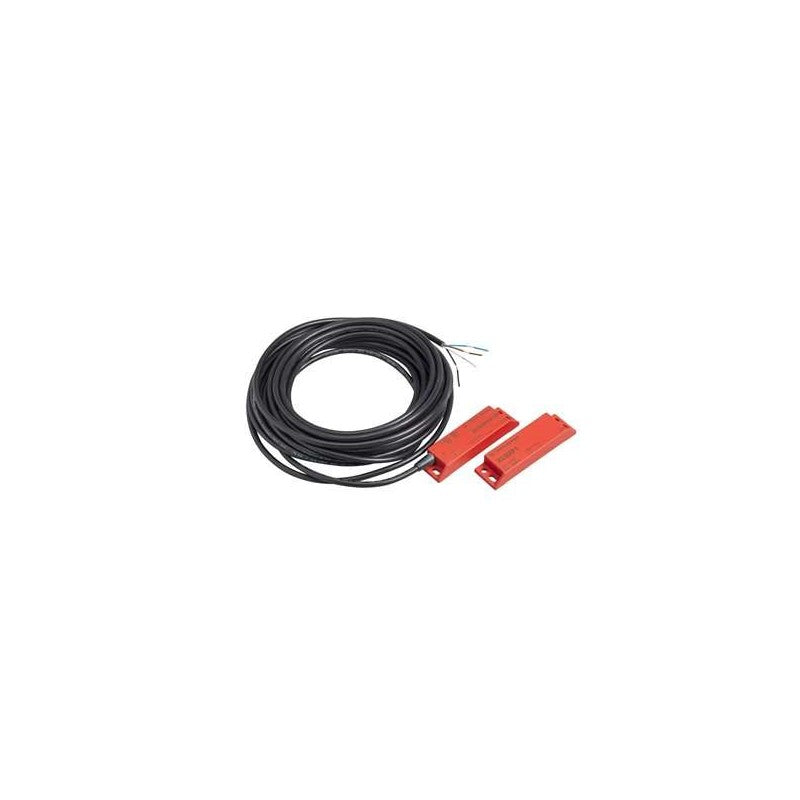

The Schneider Electric XCSDMP7015 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMP series, this switch utilizes magnetic sensing technology to detect the position of guard doors or access points. It features a specific contact configuration of 2 Normally Closed (NC) and 1 Normally Open (NO) contacts, with an additional 1 NC contact designed for staggered actuation, providing enhanced safety interlocking capabilities.

Technical details

• Series: XCSDMP
• Contact Configuration: 2 NC (Normally Closed) + 1 NO (Normally Open)
• Staggered Contact: 1 NC (Normally Closed)
• Actuation Type: Coded Magnetic
• Cable Length: 5 meters
• Switching Technology: Magnetic sensing
• Safety Function: Guard monitoring and interlocking
• Operating Principle: Detects the presence and alignment of a magnetic actuator.

Applications & compatibility

This coded magnetic switch is commonly employed in industrial automation systems requiring robust safety interlocks on moving machine parts. Applications include packaging machinery, assembly lines, robotic cells, and any equipment where unauthorized access during operation must be prevented. Its design ensures that the safety circuit remains open until the guard is closed and the actuator is correctly positioned.
