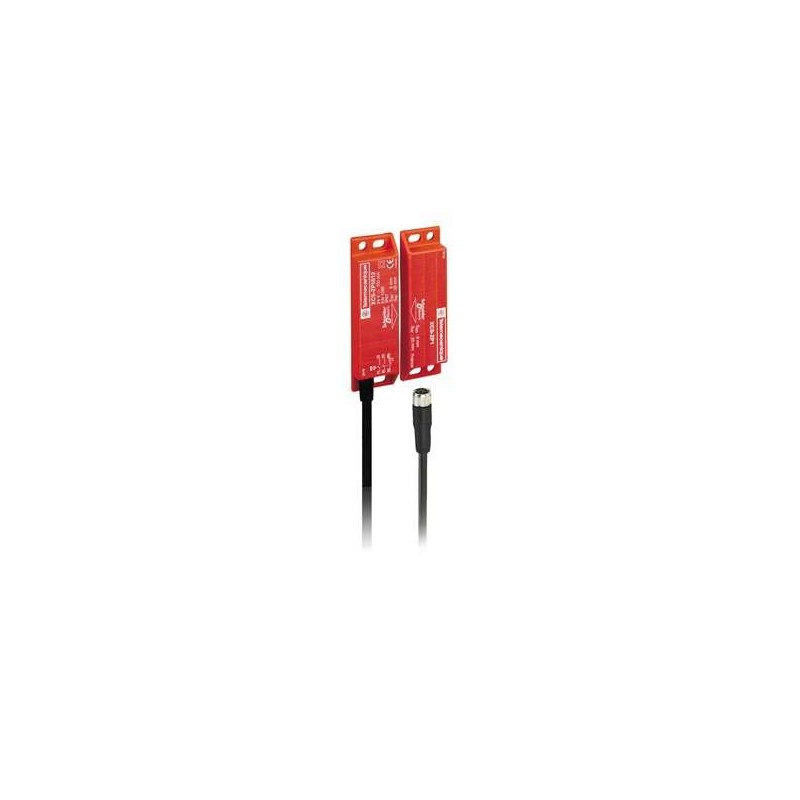

The Schneider Electric XCSDMP701L01M12 is a coded magnetic safety switch designed for machine guarding applications. This switch is part of the XCSDMP series, known for its robust construction and reliable operation in demanding industrial environments. It features a specific contact configuration that ensures safety interlock functionality.

Technical details

• Series: XCSDMP
• Switch Type: Coded Magnetic Safety Switch
• Contact Configuration: 2 NC (Normally Closed) + 1 NO (Normally Open)
• Staggered Contact: 1 NC (Normally Closed)
• Connection Type: M12 connector
• Cable Length: 0.15 meters
• Actuator Type: Magnetic
• Operating Principle: Utilizes magnetic force for detection and a coded actuator for tamper resistance.

Applications & compatibility

This safety switch is commonly employed in applications requiring reliable detection of guard closure, such as on packaging machinery, robotic cells, and automated assembly lines. Its coded nature prevents bypassing, making it suitable for safety-critical systems where unauthorized access must be prevented.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP701L01M12 or contact our technical team for cross-reference assistance with compatible XCS series components.
