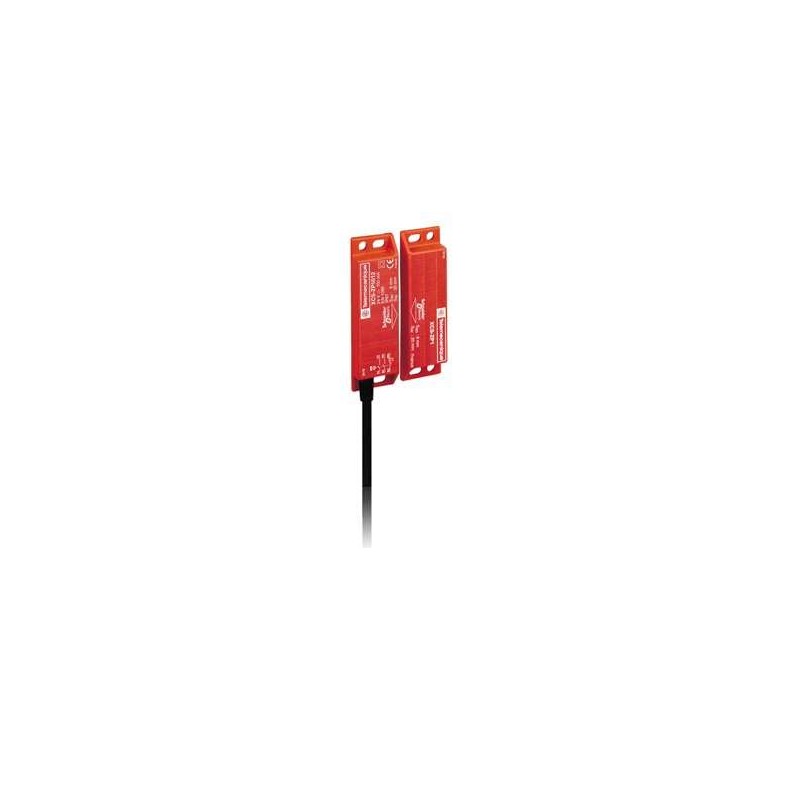

The Schneider Electric XCSDMP7905 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMP series, this switch utilizes a staggered contact arrangement for enhanced safety interlocking. It is engineered to detect the position of guard doors and machine access points, ensuring machinery stops when a guard is opened.

Technical details

• Series: XCSDMP
• Switch Type: Coded Magnetic Safety Switch
• Contact Configuration: 2 Normally Closed (NC) contacts
• Contact Staggering: Staggered
• Cable Length: 5 meters
• Actuator Type: Requires a dedicated coded magnetic actuator (sold separately)
• Operating Principle: Magnetic detection with unique coding for tamper resistance
• Enclosure Rating: Consult manufacturer datasheet for specific IP and NEMA ratings

Applications & compatibility

This safety switch is commonly integrated into safety circuits for industrial machinery, including packaging equipment, assembly lines, and material handling systems. It is designed to interlock with guard doors and access panels, preventing machine operation until the protective enclosure is secured. The XCSDMP series is compatible with various safety relays and controllers for comprehensive safety system implementation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP7905 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
