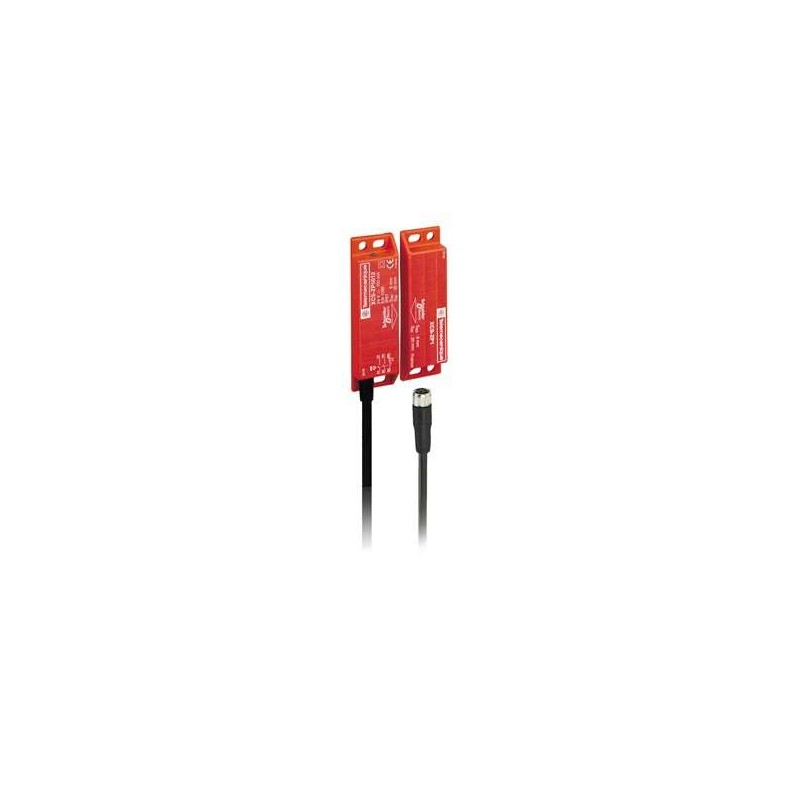

The Schneider Electric XCSDMP790L01M12 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMP series, this switch utilizes magnetic sensing technology to detect the position of a guard or door. Its robust construction and reliable operation make it suitable for integration into safety circuits on various industrial machinery.

Technical details

• Series: XCSDMP
• Switch Type: Coded Magnetic Safety Switch
• Contact Configuration: 2 Normally Closed (NC) safety contacts
• Actuator Type: Staggered
• Connection Type: M12 connector
• Pre-wired Cable Length: 0.15 meters
• Operating Principle: Magnetic sensing with unique coding for tamper resistance
• Safety Function: Guard monitoring and interlocking

Applications & compatibility

This safety switch is commonly employed in applications requiring reliable guard monitoring, such as on packaging machines, robotic cells, and assembly lines. It is designed to be compatible with safety relays and safety PLC modules that accept standard NC safety contact inputs, ensuring a secure interlocking function for personnel protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP790L01M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
