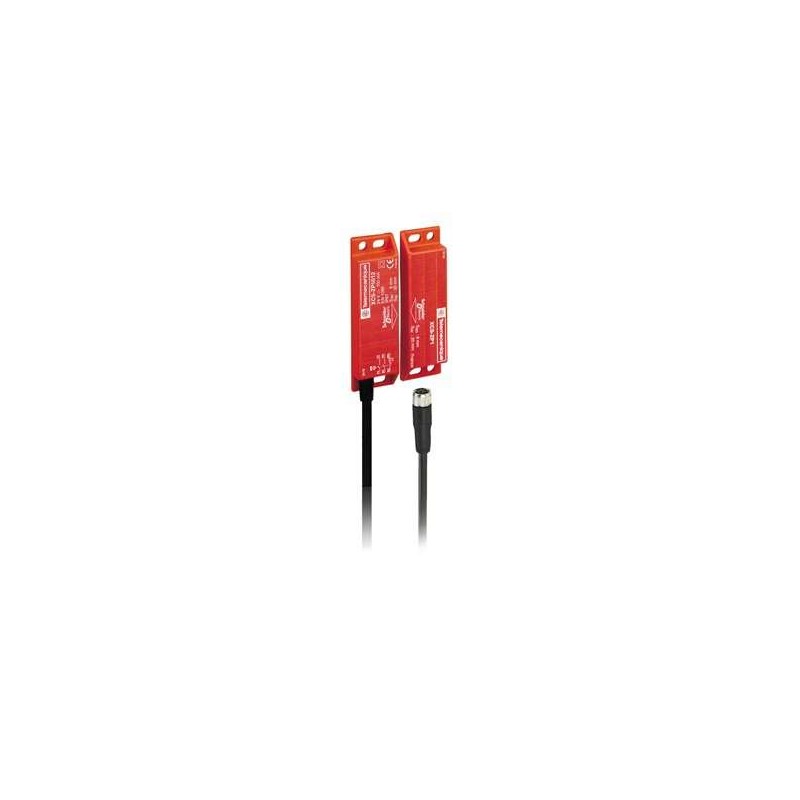

The Schneider Electric XCSDMP791L01M12 is a coded magnetic safety switch designed for machine guarding applications. This switch is part of the XCSDMP series, known for its robust construction and reliable performance in demanding industrial environments. It features a staggered contact arrangement, providing enhanced safety interlocking capabilities for critical machinery.

Technical details

• Series: XCSDMP
• Contact Configuration: 2 Normally Closed (NC) contacts
• Actuator Type: Coded Magnetic
• Connection Type: M12 connector
• Cable Length: 0.15 meters
• Switching Principle: Magnetic, requiring a specific coded actuator for operation, preventing unauthorized bypass.
• Safety Function: Provides a safety signal to a safety relay or controller upon actuator removal or misalignment.
• Enclosure Rating: Typically designed for industrial environments, refer to manufacturer datasheet for specific IP rating.

Applications & compatibility

This coded magnetic safety switch is commonly employed in applications requiring reliable detection of guard closure, such as on safety doors, access panels, and machine enclosures. It is suitable for use in industries including automotive manufacturing, food and beverage processing, and material handling systems where personnel safety is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMP791L01M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
