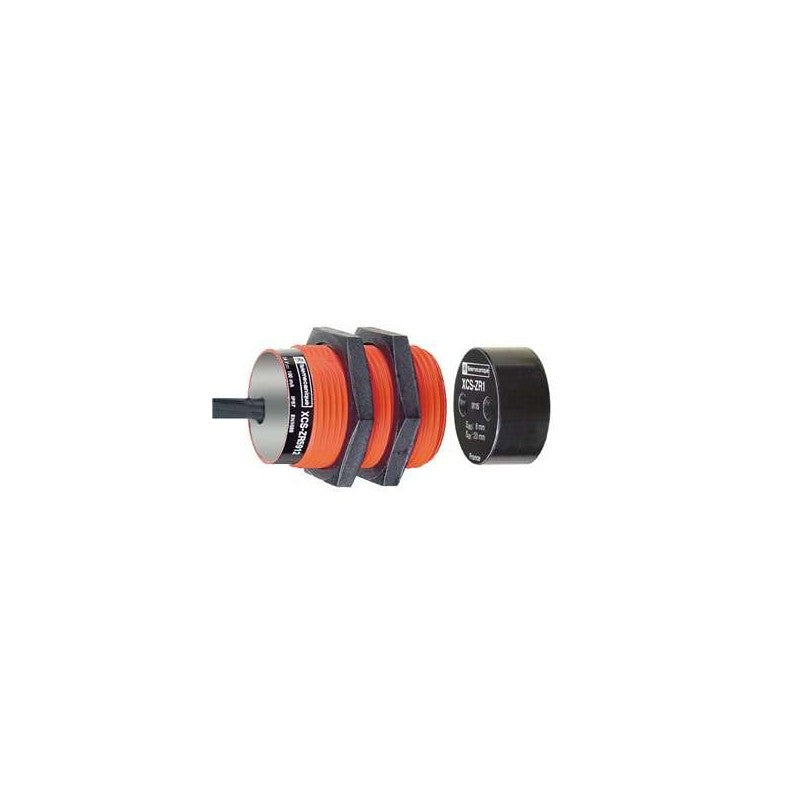

The Schneider Electric XCSDMR5902 is a coded magnetic safety switch designed for machine guarding applications. This switch is part of the XCSDMR series, featuring a staggered contact configuration for enhanced safety interlocking. It is engineered to detect the position of guards and doors, ensuring machinery stops when a guard is opened.

Technical details

• Series: XCSDMR
• Contact Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO)
• Actuator Type: Coded Magnetic
• Wiring Entry: Staggered
• Cable Length: 2 meters
• Switching Principle: Magnetic
• Safety Function: Guard monitoring
• Operating Principle: Requires a specific coded actuator for operation, preventing bypass with standard magnets.

Applications & compatibility

This safety switch is commonly employed in industrial automation systems requiring reliable guard monitoring. Applications include packaging machinery, assembly lines, robotic cells, and any automated equipment where personnel safety is paramount. It integrates into safety circuits to ensure compliance with safety standards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMR5902 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
