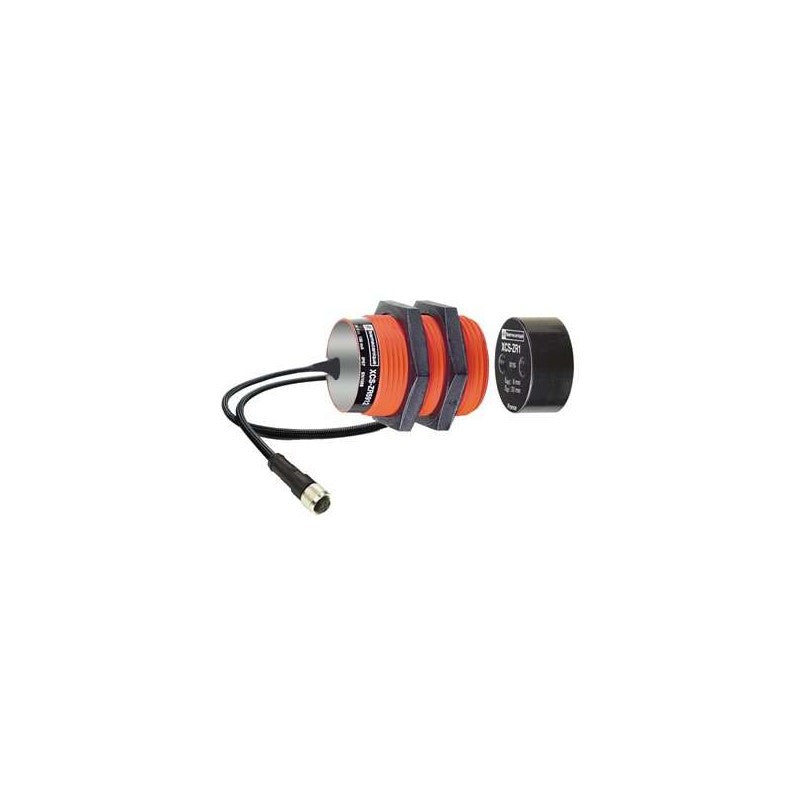

The Schneider Electric XCSDMR590L01M12 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMR series, this switch utilizes magnetic sensing technology to detect the position of a guard or door. It features a staggered contact configuration, providing one normally closed (NC) and one normally open (NO) contact for safety circuit integration.

Technical details

• Series: XCSDMR
• Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
• Actuator Type: Coded Magnetic
• Connection Type: M12 connector
• Cable Length: 0.15 meters (150 mm)
• Switching Function: Staggered contacts
• Safety Function: Guard monitoring
• Enclosure Rating: Please verify with manufacturer datasheet for specific IP and NEMA ratings.

Applications & compatibility

This coded magnetic safety switch is suitable for use on various industrial machinery where reliable guard position monitoring is critical. Common applications include packaging machinery, assembly lines, robotic cells, and material handling systems. Its M12 connector ensures straightforward integration with compatible safety controllers and I/O modules.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMR590L01M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
