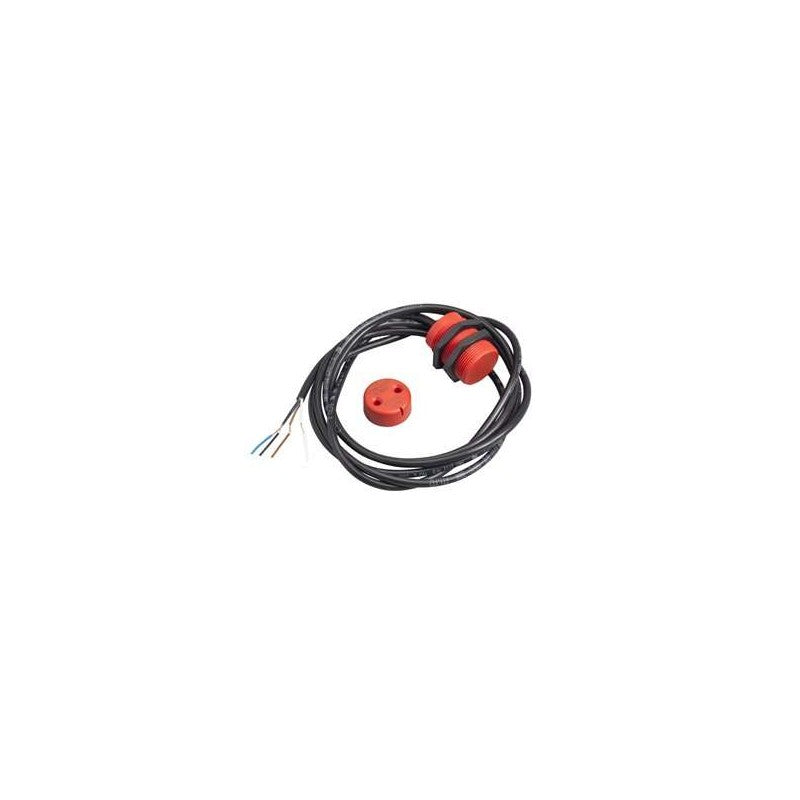

The Schneider Electric XCSDMR series coded magnetic switch is designed for safety monitoring applications in industrial environments. This particular model, the XCSDMR5912, features a staggered contact configuration with one normally closed (NC) and one normally open (NO) contact. It is engineered for reliable detection of guard or door positions, ensuring machinery stops when access points are opened.

Technical details

• Series: XCSDMR Coded Magnetic Switch
• Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open)
• Actuator Type: Staggered
• Cable Length: 2 meters
• Switching Technology: Coded Magnetic
• Operating Principle: Detects the presence and alignment of a specific coded actuator.
• Enclosure Material: Durable plastic housing suitable for industrial conditions.
• Mounting: Designed for surface mounting on machine guards and doors.

Applications & compatibility

This XCSDMR5912 switch is commonly integrated into safety circuits for various automated machinery, including packaging lines, robotic cells, and material handling systems. It is compatible with safety relays and controllers that accept standard NC/NO contact inputs for guard monitoring, providing a robust solution for machine safety compliance.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMR5912 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
