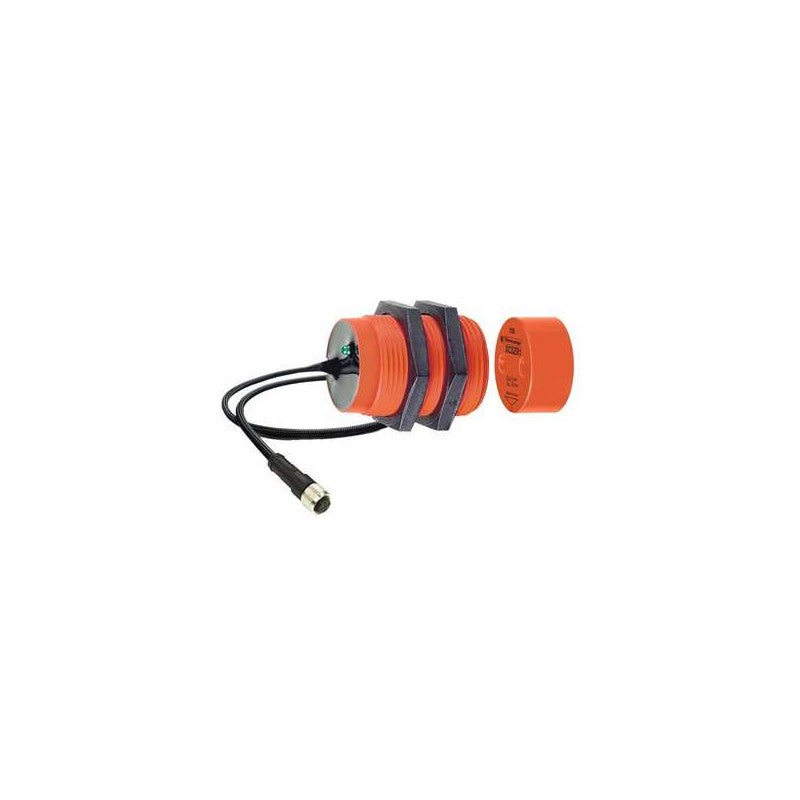

The Schneider Electric XCSDMR591L01M12 is a coded magnetic safety switch designed for machine guarding applications. This switch is part of the XCSDMR series, featuring a staggered contact arrangement for enhanced safety interlocking. It is equipped with a standard M12 connector for straightforward integration into automation systems.

Technical details

• Series: XCSDMR
• Contact Configuration: 1 Normally Closed (NC) + 1 Normally Open (NO)
• Actuator Type: Staggered
• Connection Type: M12 connector
• Cable Length: 0.15 meters
• Switching Principle: Coded Magnetic
• Operating Principle: Detects the presence and correct positioning of a guard door or access point.
• Safety Function: Provides a safety signal to the control system to stop hazardous motion when a guard is opened.

Applications & compatibility

This safety switch is commonly employed in industrial environments requiring robust machine safety, such as on packaging machinery, robotic cells, and automated assembly lines. It is designed to interlock with guard doors and access panels, ensuring that machinery cannot operate when safety barriers are compromised. The XCSDMR series is compatible with various safety relays and controllers for comprehensive safety circuit implementation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMR591L01M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
