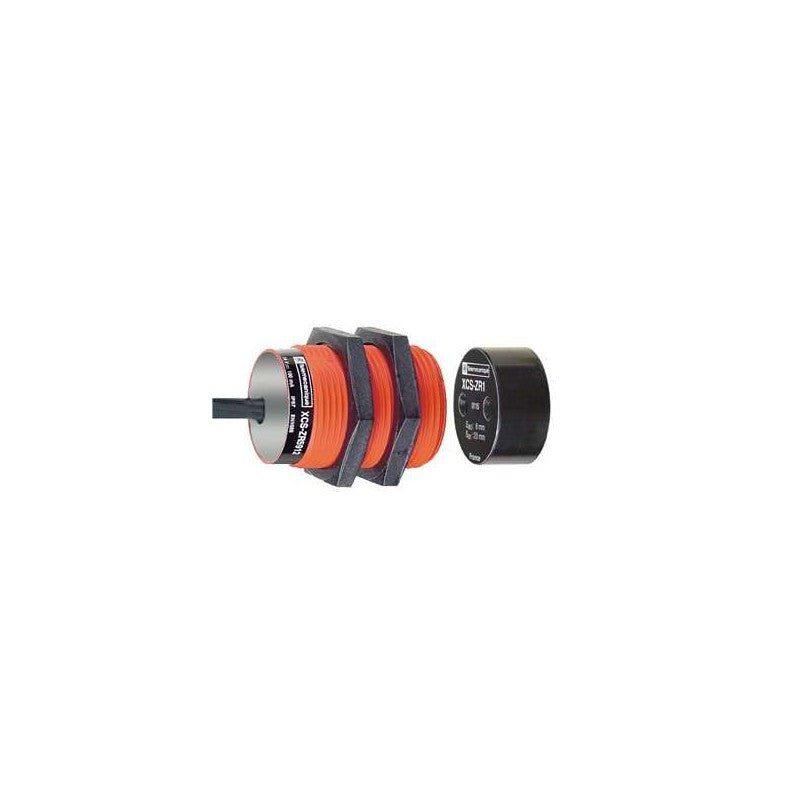

The Schneider Electric XCSDMR79010 is a coded magnetic safety switch designed for robust machine guarding applications. As part of the XCSDMR series, this switch utilizes magnetic sensing technology to detect the position of guard doors or access points. Its staggered contact configuration ensures reliable operation in demanding industrial environments.

Technical details

• Series: XCSDMR
• Contact Configuration: 2 NC (Normally Closed)
• Actuator Type: Staggered
• Cable Length: 10 meters
• Switching Technology: Coded Magnetic
• Operating Principle: Detects the presence and alignment of a specific coded actuator.
• Safety Function: Provides a safety signal to a safety relay or controller when the guard is closed and correctly aligned.
• Enclosure Rating: Refer to manufacturer datasheet for specific IP and NEMA ratings.

Applications & compatibility

This safety switch is commonly employed in applications requiring reliable detection of guard openings on machinery such as packaging lines, assembly machines, and material handling systems. It is designed to integrate with safety control systems that monitor guard status to prevent hazardous machine operation when access points are open.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMR79010 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
