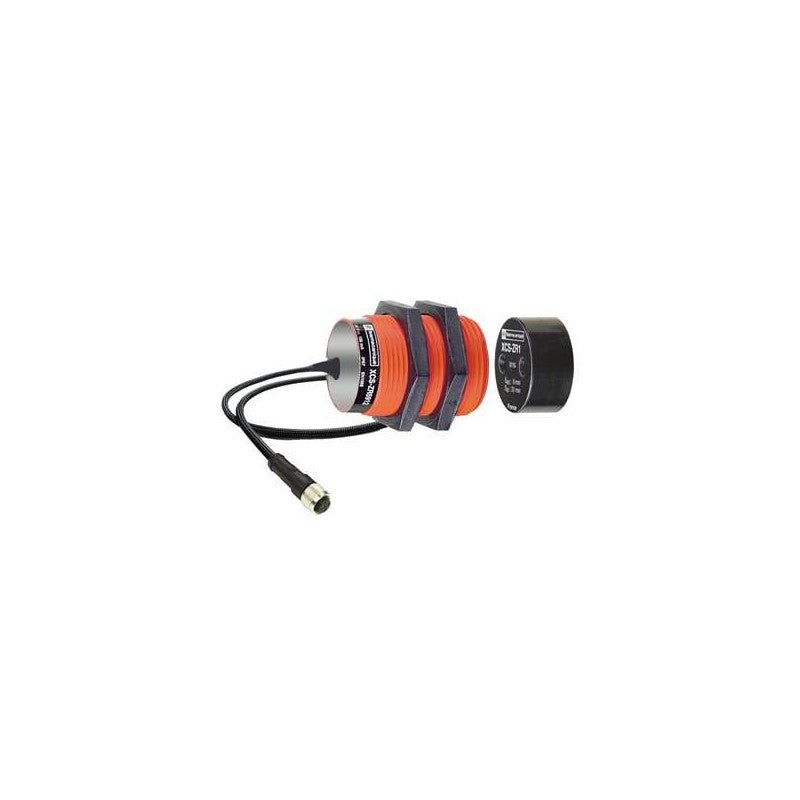

The Schneider Electric XCSDMR790L01M12 is a coded magnetic safety switch designed for machine guarding applications. As part of the XCSDMR series, this switch utilizes magnetic sensing technology to detect the position of guard doors or access points. It features two normally closed (NC) safety contacts and is configured with staggered contacts for enhanced safety redundancy.

Technical details

• Series: XCSDMR
• Contact Configuration: 2 NC (Normally Closed)
• Contact Type: Staggered
• Connection Type: M12 connector
• Cable Length: 0.15 meters
• Actuator Type: Coded magnetic
• Switching Principle: Magnetic detection
• Safety Function: Guard monitoring

Applications & compatibility

This coded magnetic safety switch is commonly employed in industrial automation environments to ensure personnel safety on machinery. It is suitable for applications such as packaging machinery, assembly lines, robotic cells, and any system requiring reliable monitoring of access points to prevent operation when guards are open.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMR790L01M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
