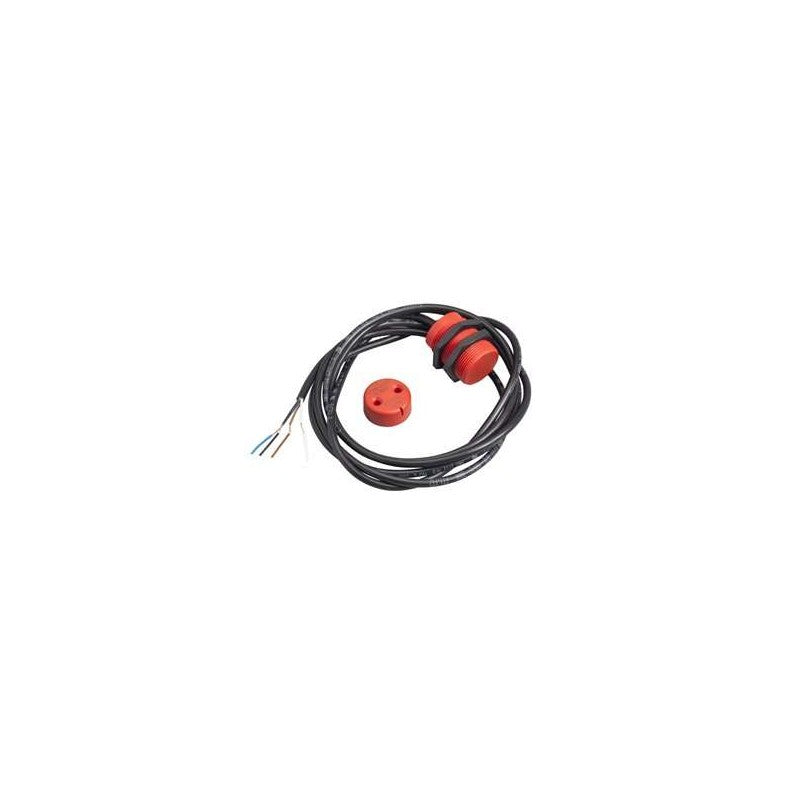

The Schneider Electric XCSDMR7912 is a coded magnetic safety switch designed for machine guarding applications. This specific model features two normally closed (NC) safety contacts and is configured with staggered contacts, a common setup for interlocking guard doors. Its robust construction and reliable operation make it suitable for integration into safety circuits on various industrial machinery.

Technical details

• Series: XCSDMR Coded Magnetic Safety Switch
• Contact Configuration: 2 Normally Closed (NC) safety contacts
• Contact Type: Staggered
• Cable Length: 2 meters (2m)
• Actuator Type: Coded Magnetic
• Operating Principle: Magnetic detection of actuator presence and position
• Safety Function: Guard interlocking and position monitoring
• Enclosure Rating: Typically IP67 or IP69K for harsh industrial environments (verify with datasheet)

Applications & compatibility

This safety switch is commonly employed in applications requiring reliable monitoring of guard doors, access panels, and other machine enclosures. It is frequently found on packaging machinery, robotic cells, CNC machines, and assembly lines where personnel safety is paramount. The coded nature of the actuator helps prevent unauthorized or accidental bypassing of the safety function.
