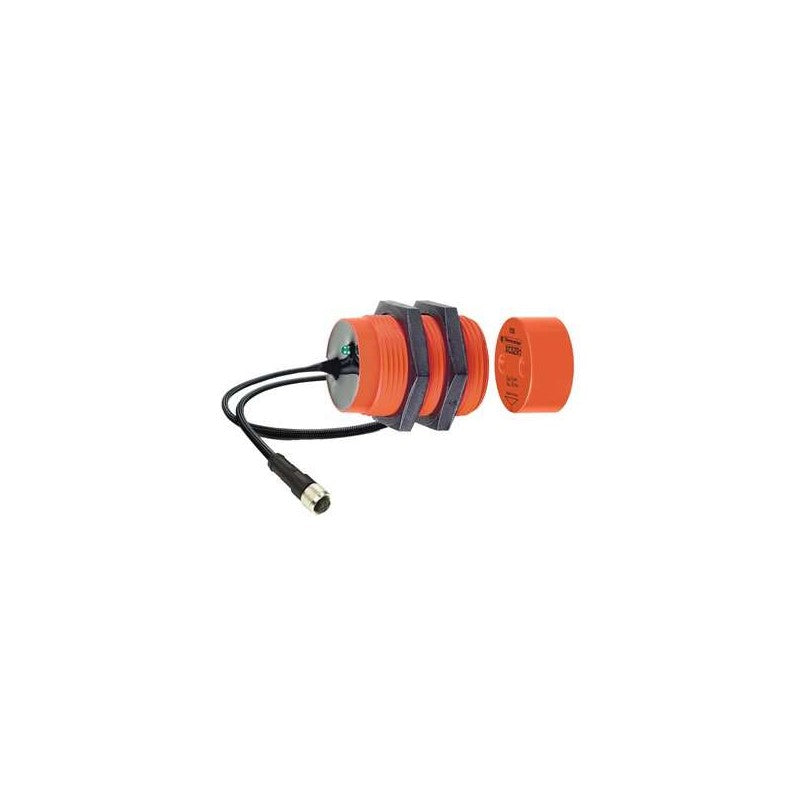

The Schneider Electric XCSDMR791L01M12 is a coded magnetic safety switch designed for machine guarding applications. This switch is part of the XCSDMR series, featuring a staggered contact arrangement for enhanced safety interlocking. Its robust construction and reliable operation make it suitable for integration into safety circuits on various industrial machinery.

Technical details

• Series: XCSDMR
• Switch Type: Coded Magnetic Safety Switch
• Contact Configuration: 2 NC (Normally Closed)
• Contact Arrangement: Staggered
• Connector Type: M12
• Cable Length: 0.15 meters
• Actuator Type: Requires a specific coded actuator (sold separately) for tamper resistance.
• Operating Principle: Magnetic actuation with coded recognition to prevent bypassing.

Applications & compatibility

This safety switch is commonly employed in applications requiring reliable detection of guard or door closure. It is ideal for use on packaging machinery, robotic cells, assembly lines, and other automated equipment where personnel safety is paramount. The XCSDMR series is designed to integrate with safety relays and controllers to ensure a safe state is maintained when guards are opened.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XCSDMR791L01M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
