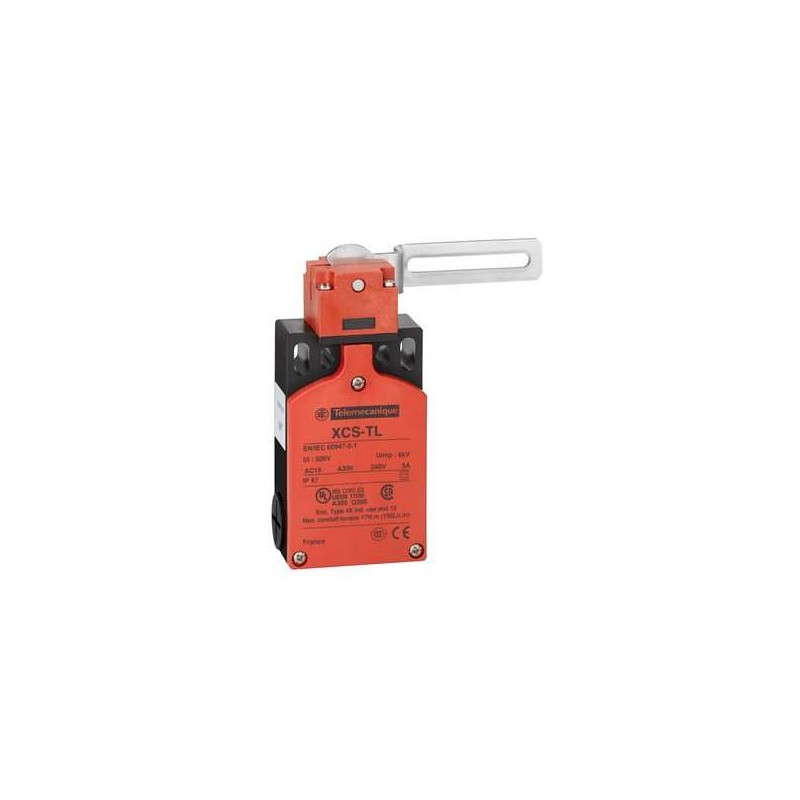

The Schneider Electric XCSTL771 is a safety switch designed for machine guarding applications. As part of the XC Series, this switch features an elbowed flush lever mechanism for actuation and is configured for operation to the right. It provides a reliable method for detecting the open or closed state of safety guards.

Technical details

• Series: XC Series
• Actuator Type: Elbowed flush lever
• Actuation Direction: To right
• Contact Configuration: 2NC (Normally Closed) + 1NO (Normally Open)
• Enclosure Type: Safety Switch
• Cable Entry: PG11
• Switching Capacity: Verify with manufacturer datasheet for specific electrical ratings (voltage, current, power).
• Operating Temperature: Verify with manufacturer datasheet for specific range.

Applications & compatibility

This safety switch is commonly employed in industrial environments to ensure operator safety by monitoring the position of machine guards, doors, and access panels. It is suitable for integration into safety circuits on packaging machinery, assembly lines, robotic cells, and other automated equipment where hazardous motion must be stopped when a guard is opened.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XCSTL771 or contact our technical team for cross-reference assistance with compatible XC Series components.
