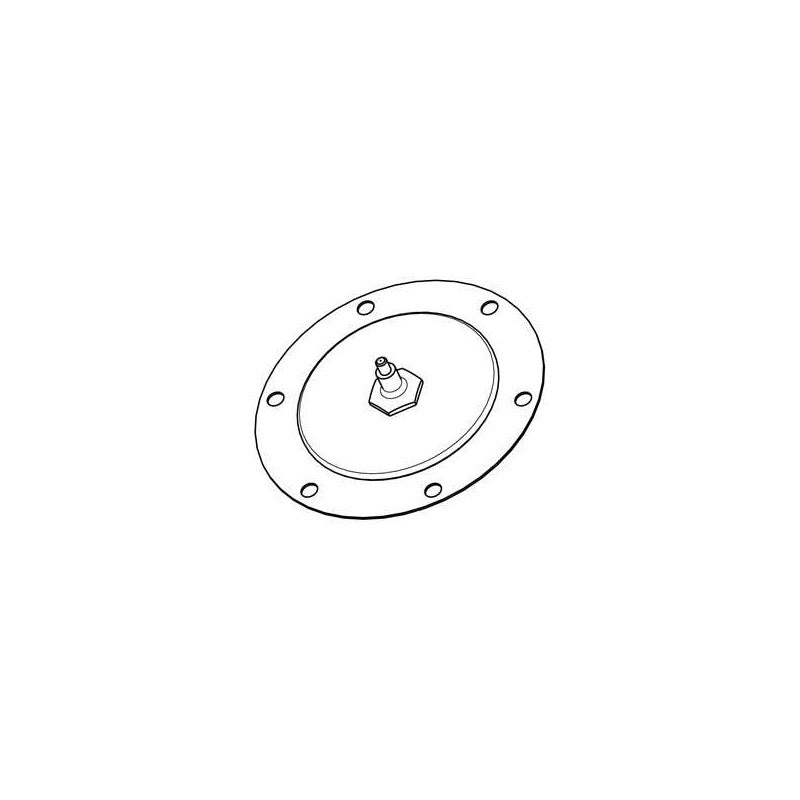

This diaphragm is designed as a replacement component for the Schneider Electric XML S02 pressure switch series. It is specifically engineered to maintain the operational integrity of pressure sensing mechanisms within these industrial switches. The diaphragm's material and construction are critical for accurate pressure translation into electrical signals.

Technical details

• Component Type: Diaphragm
• Compatible Pressure Switch Series: Schneider Electric XML S02
• Function: Facilitates pressure sensing within the switch mechanism.
• Material: (Refer to manufacturer datasheet for specific material composition)
• Operating Temperature Range: (Refer to manufacturer datasheet for specific range)
• Pressure Range Compatibility: (Refer to manufacturer datasheet for specific pressure ratings)
• Sealing Properties: Designed to maintain seal integrity under pressure fluctuations.
• Durability: Engineered for sustained performance in industrial environments.

Applications & compatibility

This diaphragm is essential for maintaining the functionality of Schneider Electric XML S02 pressure switches. These switches are commonly deployed in process control systems, machine tool applications, and pneumatic or hydraulic systems where precise pressure monitoring is required. Its compatibility is limited to the specified Schneider Electric pressure switch model.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XMLZL014 diaphragm or contact our technical team for cross-reference assistance with compatible Schneider Electric pressure switch components.
