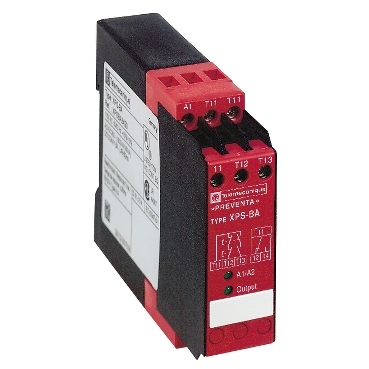

The Schneider Electric XPSBA5120 is a two-hand control module designed for safety applications within industrial automation systems. This module is part of the XPSBA safety relay series, engineered to ensure operator safety during hazardous machine operations. It operates on a versatile 24V AC/DC power supply, making it compatible with a wide range of control power configurations.

Technical details

• Series: XPSBA Safety Relay
• Type: Two-Hand Control Module
• Input Voltage: 24V AC / 24V DC
• Functionality: Monitors two-hand control inputs to prevent machine operation unless both control devices are activated simultaneously.
• Safety Functions: Designed to meet stringent safety standards for machine guarding and operator protection.
• Output Configuration: Typically includes safety-rated outputs for controlling machine contactors or safety PLCs.
• Reset Functionality: Features a manual reset mechanism to ensure a deliberate operator action is required after a safety stop.
• Status Indication: Equipped with LED indicators for power, input status, and output status for quick diagnostics.

Applications & compatibility

This XPSBA5120 module is commonly employed in applications requiring enhanced operator safety, such as press brakes, stamping machines, cutting machinery, and assembly lines where manual intervention is necessary. It integrates seamlessly into safety circuits to prevent accidental machine startup when an operator's hands are not in a safe position.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XPSBA5120 or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
