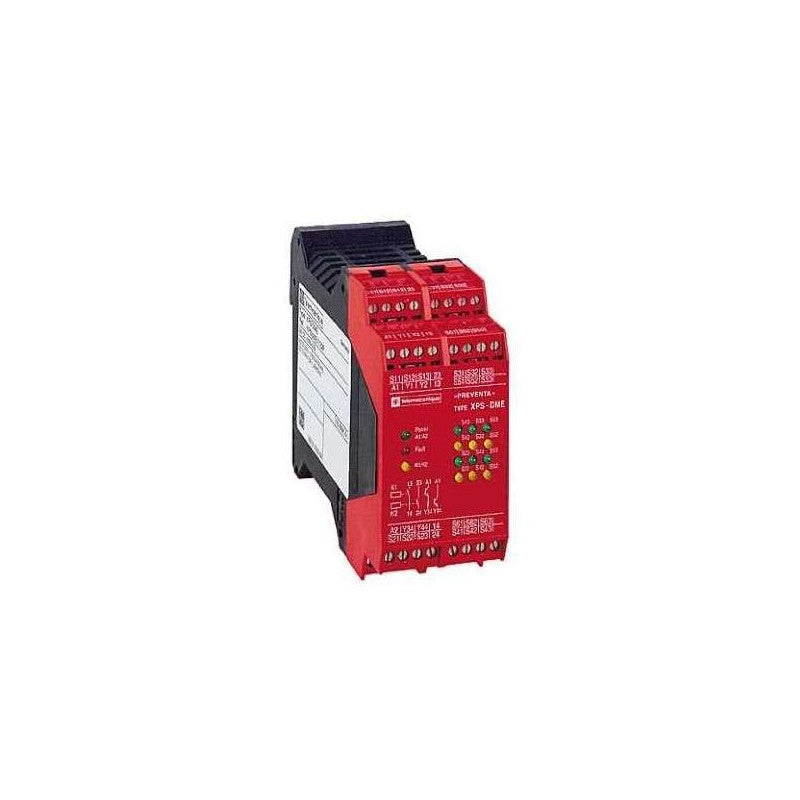

The Schneider Electric XPSDM module is a coded magnetic switch designed for safety monitoring applications. This specific unit, identified by the part number XPSDME1132P, operates within the XPSDM series, a range of safety modules engineered to detect the position of guard doors and other safety barriers. It is configured for a 24 V DC power supply, ensuring compatibility with standard industrial control voltages.

Technical details

• Series: XPSDM
• Type: Coded Magnetic Switch Module
• Voltage: 24 V DC
• Functionality: Safety monitoring of guard doors and machine access points.
• Switching Technology: Utilizes coded magnetic sensing for tamper resistance and reliable detection.
• Input/Output Configuration: Features inputs for coded magnetic switches and outputs for signaling safety status. (Specific I/O count and type to be verified against datasheet).
• Enclosure Type: Designed for integration into control panels or machine enclosures. (Specific dimensions and mounting details to be verified against datasheet).

Applications & compatibility

This XPSDM module is integral to safety circuits in a wide array of industrial automation systems. It is commonly employed in applications requiring reliable detection of guard interlocks on machinery such as packaging equipment, robotic cells, CNC machines, and assembly lines. Its coded nature provides enhanced security against bypassing safety measures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XPSDME1132P or contact our technical team for cross-reference assistance with compatible Schneider Electric safety components.
