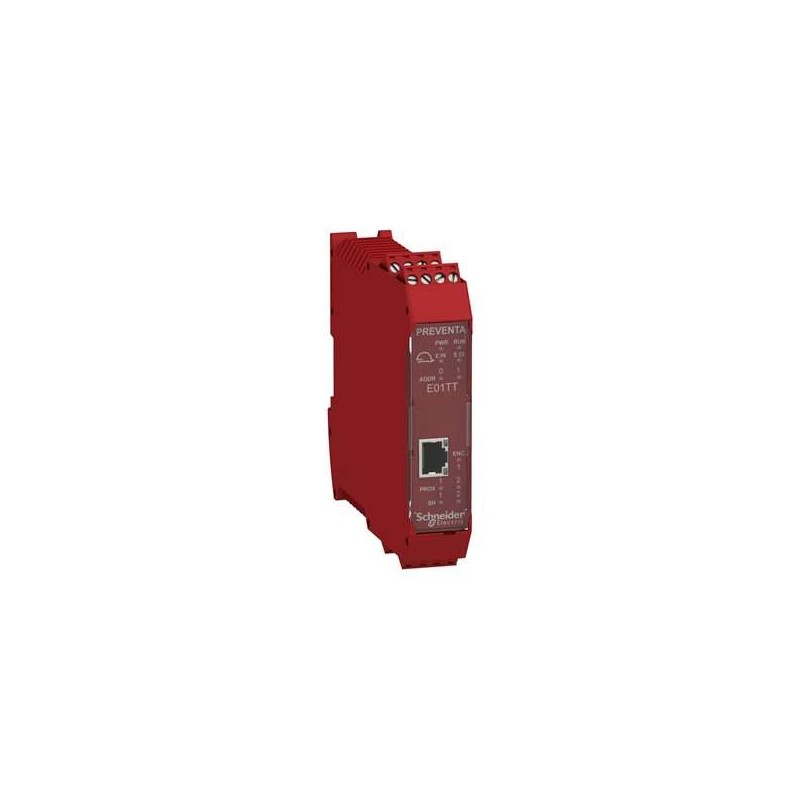

The Schneider Electric XPSMCMEN0100TT is an expansion module designed for speed monitoring applications, specifically integrating with TTL encoders. This module is part of Schneider Electric's comprehensive safety and automation solutions, often found in machine safety systems where precise speed control and monitoring are critical for operational safety and efficiency.

Technical details

• Module Type: Speed Monitoring Expansion Module
• Encoder Interface: 1 x TTL Encoder Input
• Connection Type: Screw Terminals
• Functionality: Enables the monitoring of encoder speed signals for safety-related functions.
• Compatibility: Designed to interface with compatible Schneider Electric safety controllers and automation systems. Specific controller compatibility should be verified against the manufacturer's datasheet.
• Voltage/Current Ratings: Specific voltage and current ratings are not determinable from the provided part number and require verification against the Schneider Electric datasheet.
• Protocol: The specific communication protocol for integration with the main controller is not explicitly stated and should be confirmed via manufacturer documentation.

Applications & compatibility

This expansion module is suitable for use in a wide range of industrial automation and machine safety applications. It is commonly deployed in systems requiring precise speed monitoring for functions such as emergency stop, safe speed limitation, and standstill monitoring. Applications include packaging machinery, robotics, material handling systems, and any automated equipment where personnel safety is paramount and linked to machine speed.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XPSMCMEN0100TT or contact our technical team for cross-reference assistance with compatible Schneider Electric safety system components.
