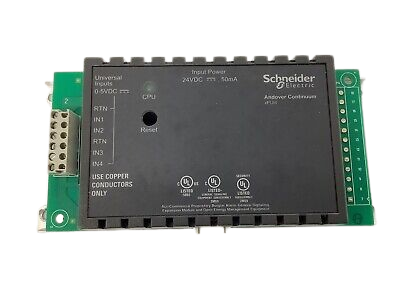

The Schneider Electric XPUI4 expansion module provides four analog voltage inputs, designed for integration into automation systems requiring precise signal acquisition. This module is part of Schneider Electric's expansive automation component portfolio, commonly utilized in process control and machine automation applications where monitoring of analog signals is critical.

Technical details

• Module Type: Expansion Module
• Input Configuration: 4 Analog Voltage Inputs
• Input Signal Range: 0-5 VDC
• Input Current Rating: 50 mA per input
• Manufacturer Series: XPUI (as indicated by part number prefix)
• Form Factor: Designed for DIN rail mounting or panel integration within compatible Schneider Electric racks.
• Communication Protocol: Specific protocol depends on the base controller; consult manufacturer datasheet for compatibility.
• Power Consumption: Refer to the manufacturer's datasheet for precise power consumption figures.

Applications & compatibility

This expansion module is suitable for applications requiring the monitoring of analog voltage signals, such as temperature sensors, pressure transducers, or flow meters. It integrates seamlessly with compatible Schneider Electric controllers and I/O systems, finding use in industries like food and beverage processing, water treatment, and general manufacturing.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XPUI4 or contact our technical team for cross-reference assistance with compatible Schneider Electric I/O components.
