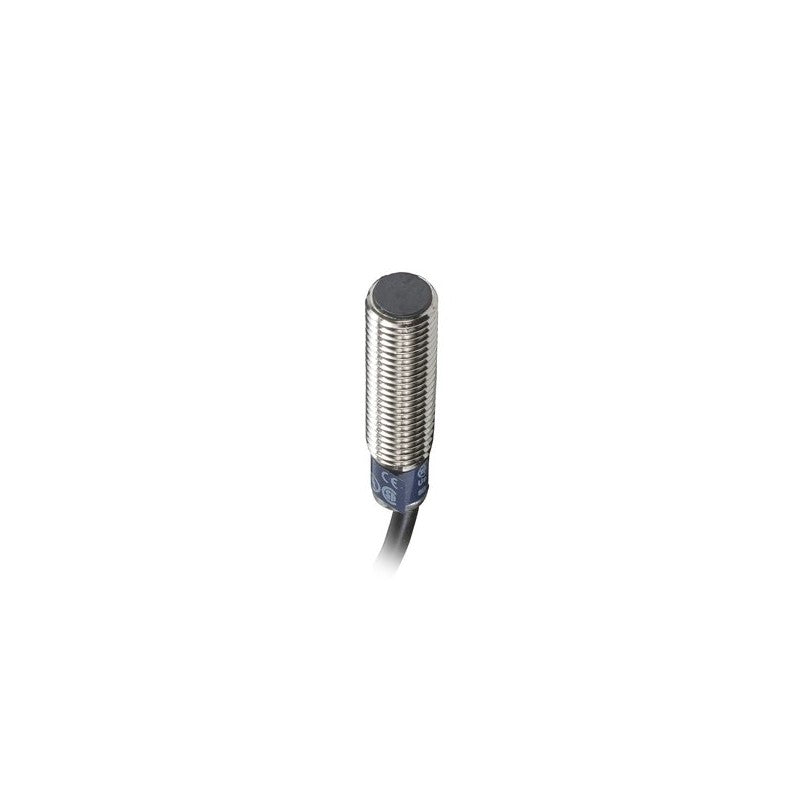

The Schneider Electric XS108B3NAL5 is an inductive proximity sensor designed for detecting metallic objects in automation systems. As part of the XS1 M8 series, this sensor features a compact M8 threaded housing with a length of 33mm and a sensing range of 2mm. It operates on a 12-24VDC power supply and comes pre-wired with a 5-meter cable, making it suitable for integration into various machine control panels and industrial environments.

Technical details

• Series: XS1 M8
• Housing Material: Brass
• Sensing Technology: Inductive
• Sensing Range (Sn): 2mm
• Operating Voltage: 12-24VDC
• Output Type: Not specified in provided information; consult datasheet for PNP/NPN and NO/NC configuration.
• Connection: 5-meter cable
• Housing Diameter: M8 threaded
• Housing Length: 33mm

Applications & compatibility

This inductive sensor is commonly employed in applications requiring non-contact detection of metal parts, such as on assembly lines, in robotics, or within material handling equipment. Its robust brass construction and standard M8 form factor ensure compatibility with a wide array of mounting brackets and automation control systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS108B3NAL5 or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
