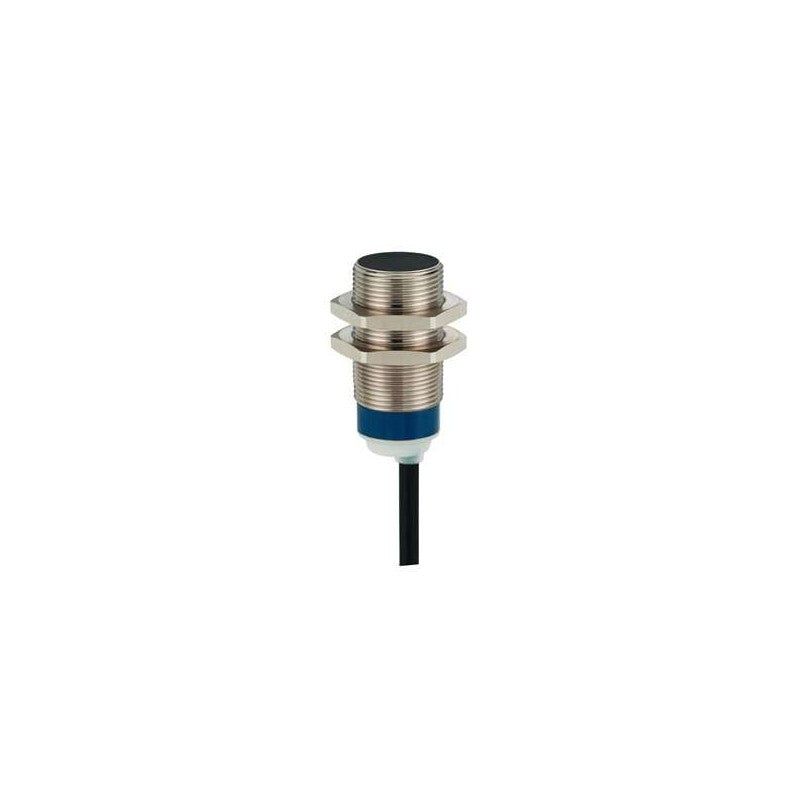

Schneider Electric's XS118B3NAL2TQ is an inductive proximity sensor designed for detecting metallic objects without physical contact. As part of the XS1 series, this sensor features a cylindrical M18 housing with a threaded brass body, commonly integrated into machine tool applications and automated assembly lines where robust sensing is required. Its compact L39mm length and standard M18 thread facilitate straightforward mounting in various industrial environments.

Technical details

• Sensor Type: Inductive Proximity Sensor
• Series: XS1
• Housing Material: Brass
• Housing Diameter: M18
• Sensing Range (Sn): 8mm
• Operating Voltage: 12-24VDC
• Output Type: NPN, Normally Open (NO)
• Connection Type: 2-meter cable
• Housing Length: 39mm

Applications & compatibility

This inductive sensor is suitable for detecting ferrous and non-ferrous metals in applications such as metalworking machinery, material handling systems, and automated production equipment. Its NPN output configuration makes it compatible with a wide range of industrial controllers and PLCs that accept this standard signal type.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS118B3NAL2TQ or contact our technical team for cross-reference assistance with compatible XS1 series components.
