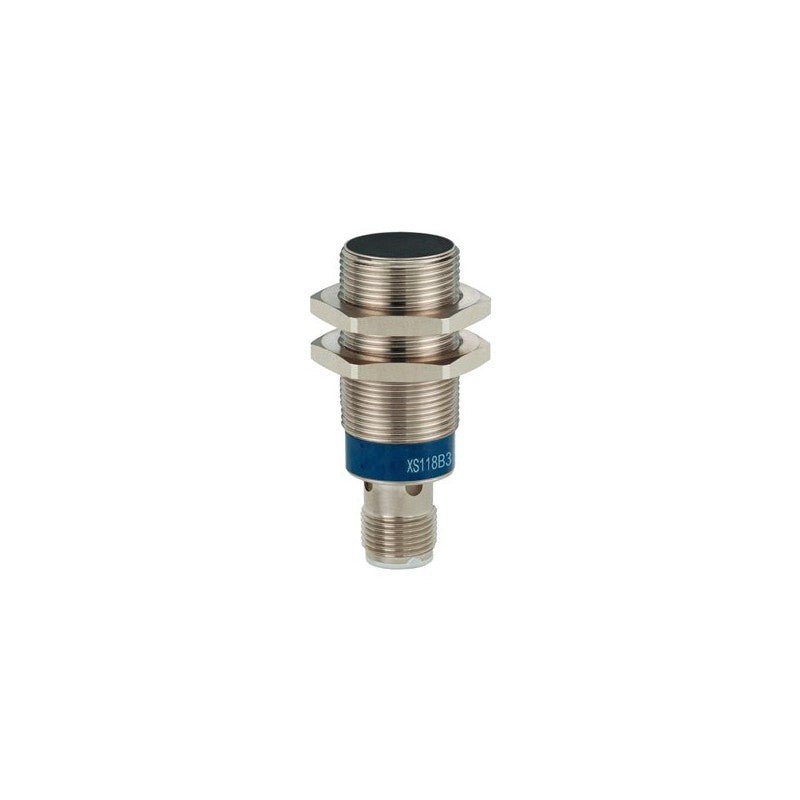

Schneider Electric's XS118B3NAM12 is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS1 M18 series, this sensor features a cylindrical brass housing with a threaded M18 body and a sensing face positioned at the end of a 50mm long barrel. It operates within a 12-24VDC voltage range and offers a sensing distance of 8mm.

Technical details

• Series: XS1 M18
• Housing Material: Brass
• Housing Diameter: M18
• Housing Length: 50mm
• Sensing Technology: Inductive
• Sensing Distance (Sn): 8mm
• Operating Voltage: 12-24VDC
• Connection Type: M12 connector

Applications & compatibility

This inductive sensor is suitable for a wide range of industrial automation tasks, including presence detection on assembly lines, positioning control in robotic cells, and object sensing in material handling equipment. Its robust brass construction and standard M18 form factor ensure compatibility with many existing machine designs and control panels.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS118B3NAM12 or contact our technical team for cross-reference assistance with compatible Schneider Electric proximity sensor components.
