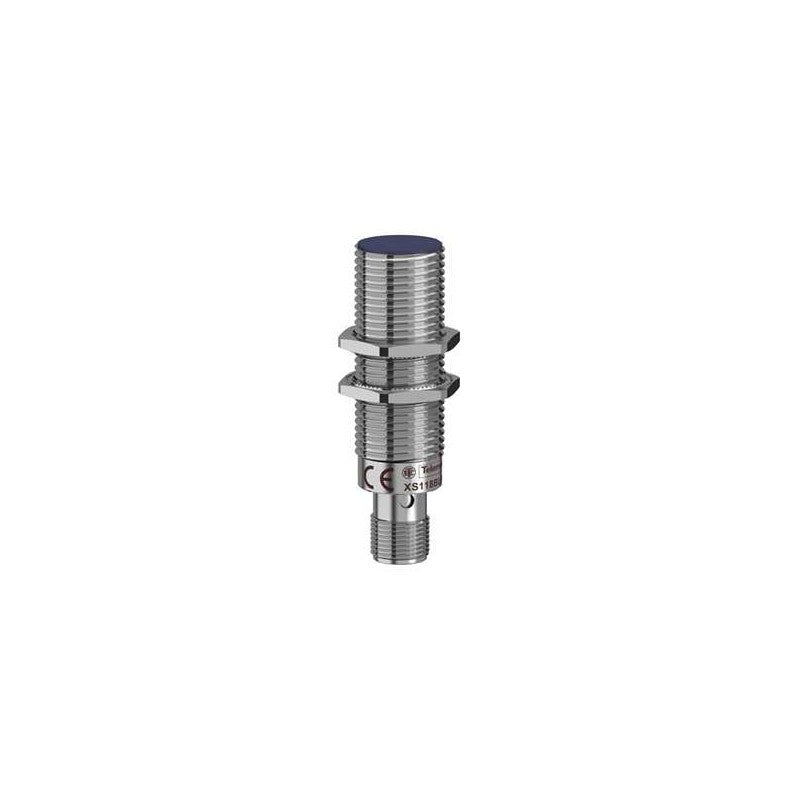

The Schneider Electric XS118BLPAM12 is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS1 M18 series, this sensor features a cylindrical brass housing with a threaded body for easy mounting in industrial environments. Its sensing face is positioned at the front of the M18 housing, providing a compact solution for space-constrained applications.

Technical details

• Series: XS1 M18
• Housing Material: Brass
• Housing Diameter: M18
• Housing Length: 64mm
• Sensing Distance (Sn): 5mm
• Operating Voltage: 12-24 VDC
• Connection Type: M12 connector
• Output Type: PNP (indicated by the 'P' in the part number, typically signifying a positive output)

Applications & compatibility

This inductive sensor is suitable for a wide range of automation tasks, including presence detection on assembly lines, position sensing in robotic cells, and object counting in material handling systems. It is commonly integrated into control panels and machinery requiring reliable non-contact detection of ferrous and non-ferrous metals.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS118BLPAM12 or contact our technical team for cross-reference assistance with compatible Schneider Electric sensor components.
