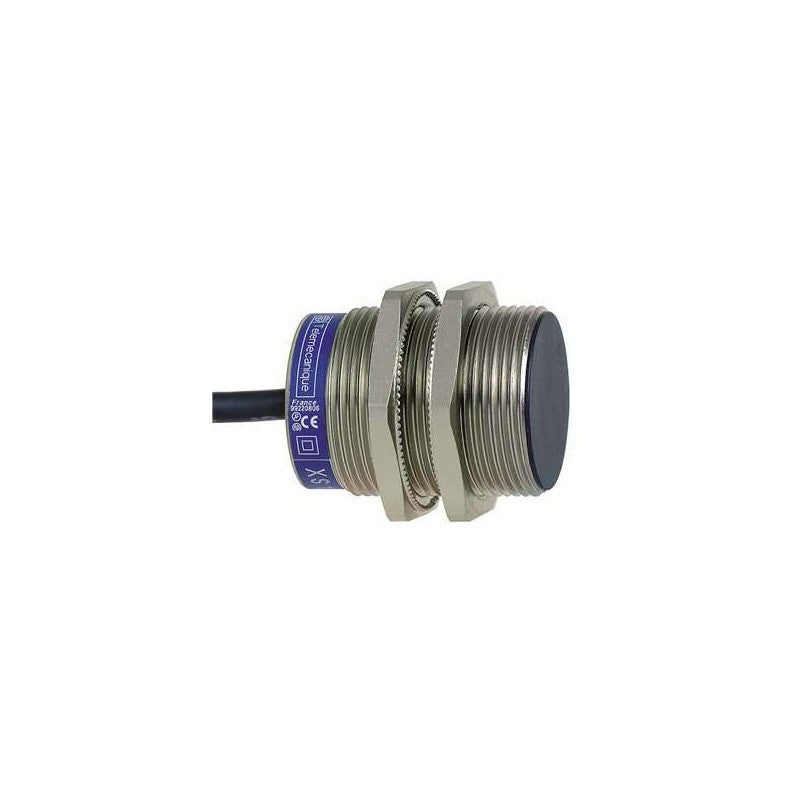

The Schneider Electric XS1N30NA349 is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS1 series, this sensor features a robust brass housing and a standard M30 threaded body, commonly integrated into machine tool applications and material handling equipment.

Technical details

• Sensor Type: Inductive Proximity Sensor
• Series: XS1
• Housing Material: Brass
• Sensing Range (Sn): 20 mm
• Output Type: Normally Open (NO)
• Voltage Rating: 12-24 VDC
• Connection Type: 2-meter cable
• Body Diameter: M30
• Overall Length: 42.6 mm

Applications & compatibility

This inductive sensor is suitable for a wide range of industrial automation tasks, including presence detection on assembly lines, position sensing in robotic arms, and end-of-travel confirmation in pneumatic cylinders. Its standard M30 form factor and 20mm sensing range make it a versatile component for integration into existing control systems and machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS1N30NA349 or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
