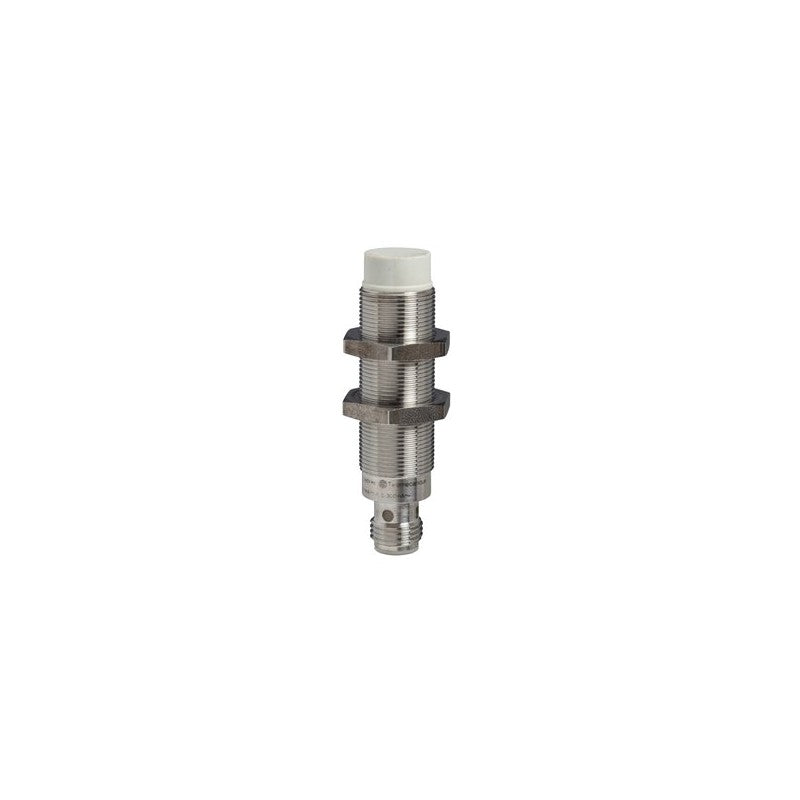

The Schneider Electric XS218SAMAU20 is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS series, this M18 threaded sensor features a stainless steel housing and a sensing range of 12mm. It operates across a wide voltage range, supporting both 24VAC and 240VAC, as well as 24VDC, making it suitable for diverse power configurations in industrial environments.

Technical details

• Series: XS Inductive Proximity Sensors
• Model Designation: XS2 M18
• Housing Material: Stainless Steel
• Sensing Range (Sn): 12mm
• Operating Voltage: 24...240VAC / 24VDC
• Connection Type: 1/2" NPT (Note: "1/2" likely refers to the conduit size or thread type, verify with datasheet for precise connection details)
• Housing Length: 72mm
• Output Type: AC/DC (typically PNP or NPN, verify with datasheet for specific output configuration)

Applications & compatibility

This inductive proximity sensor is commonly employed in machine building, material handling, and assembly lines where reliable non-contact detection of metallic targets is required. Its robust stainless steel construction makes it suitable for environments where resistance to corrosion or washdown is necessary. Applications include detecting the presence of parts on conveyor belts, confirming actuator positions on pneumatic cylinders, or signaling the completion of a manufacturing step.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS218SAMAU20 or contact our technical team for cross-reference assistance with compatible Schneider Electric XS series components.
