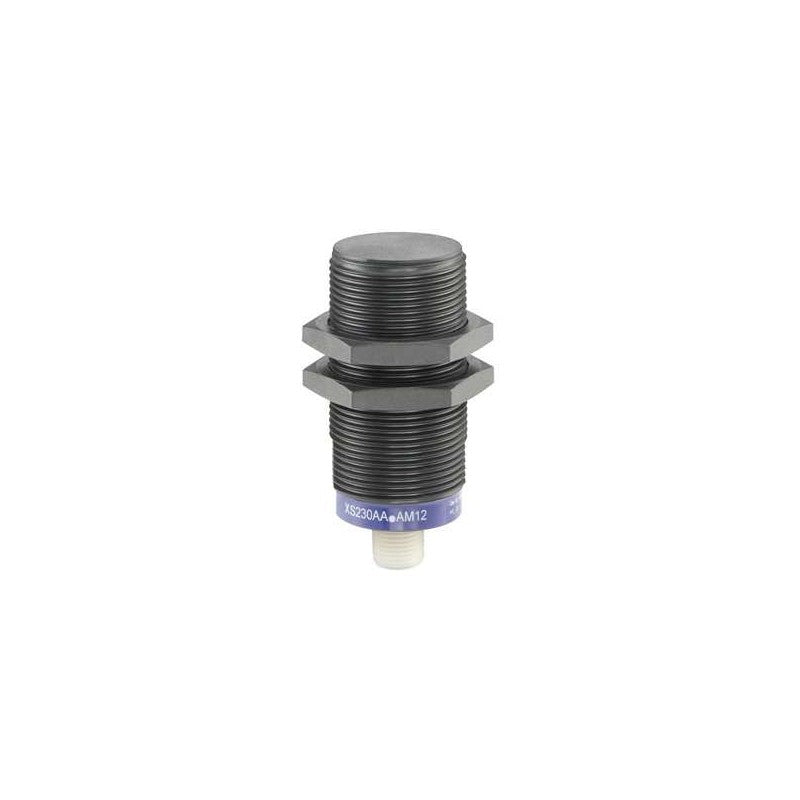

Part of the Schneider Electric XS inductive sensor family, this M30 threaded barrel sensor is designed for proximity detection in automated systems. The XS230AANAM12 features a 70mm sensing length and a 22mm sensing distance, making it suitable for applications requiring reliable object detection within a defined range. Its PPS housing offers robust protection in demanding industrial environments.

Technical details

• Series: XS M30
• Housing Material: PPS (Polyphenylene Sulfide)
• Sensing Technology: Inductive Proximity
• Sensing Distance (Sn): 22 mm
• Body Length: 70 mm
• Connection Type: M12 connector
• Operating Voltage: 12-48 VDC
• Output Type: NAMUR (typically requires an amplifier or safety relay for output switching)

Applications & compatibility

This inductive sensor is commonly deployed in machine building, material handling, and assembly lines where non-contact detection of metallic objects is required. It is compatible with systems utilizing 12-48 VDC power supplies and M12 connection standards. The NAMUR output is often used in conjunction with safety circuits or specialized control modules for enhanced system reliability.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS230AANAM12 or contact our technical team for cross-reference assistance with compatible Schneider Electric XS series components.
