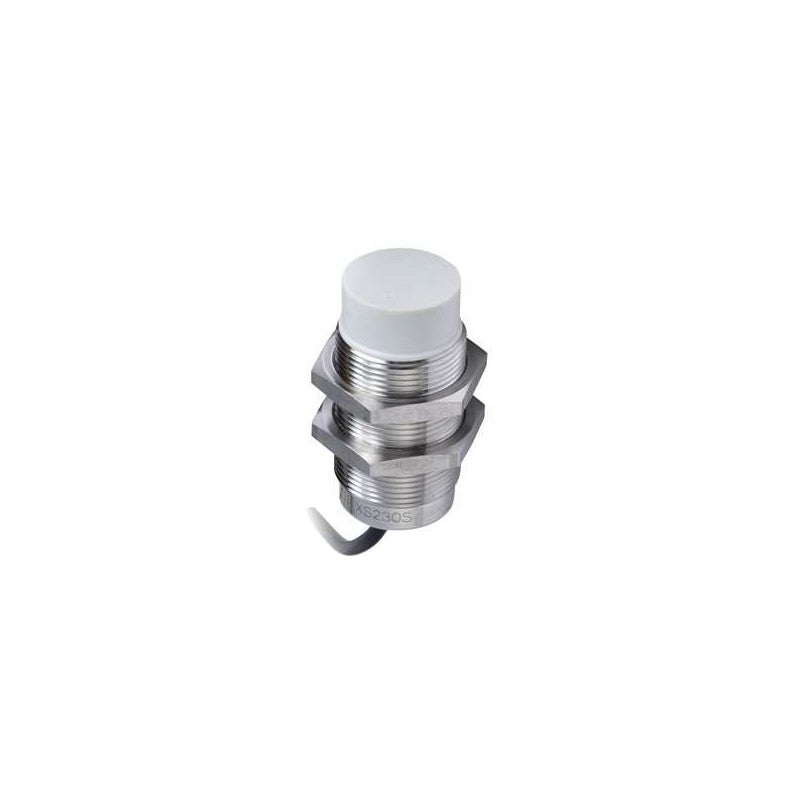

The Schneider Electric XS230SAPAL5 is an inductive proximity sensor from the XS Series, designed for detecting metallic objects in industrial environments. This M30 threaded body sensor features a stainless steel construction and a sensing distance of 22mm. It operates on a 12-24VDC power supply and comes equipped with a 5-meter cable for flexible installation.

Technical details

• Series: XS Series
• Model: XS2 M30
• Sensing Technology: Inductive Proximity
• Sensing Distance (Sn): 22mm
• Body Style: Threaded M30
• Body Length: 63mm
• Housing Material: Stainless Steel
• Operating Voltage: 12-24VDC
• Output Type: Typically NPN or PNP (verify datasheet for specific output configuration based on part number suffix)
• Connection: 5-meter cable

Applications & compatibility

This inductive sensor is suitable for a wide range of automation tasks requiring non-contact detection of metal targets. Common applications include positioning control on assembly lines, presence detection in material handling systems, and end-of-travel sensing in automated machinery. Its robust stainless steel construction makes it ideal for environments where washdown or corrosion resistance is necessary.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS230SAPAL5 or contact our technical team for cross-reference assistance with compatible XS Series sensors.
