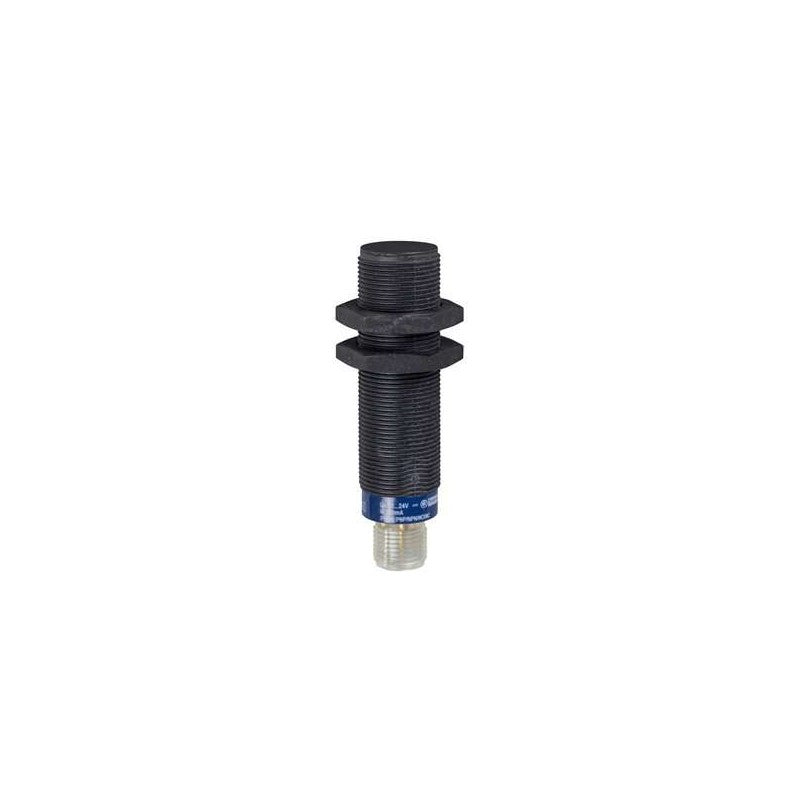

The Schneider Electric XS4P18KP340D is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS4 M18 series, this sensor features a cylindrical housing with a threaded M18 form factor and a standard sensing face. It operates within a 12-24VDC voltage range, making it suitable for integration into a wide array of DC-powered industrial control panels and machinery.

Technical details

• Series: XS4 M18
• Housing Style: Cylindrical, threaded M18
• Housing Material: PPS (Polyphenylene Sulfide)
• Sensing Range (Sn): 8mm
• Operating Voltage: 12-24VDC
• Connection Type: M12 connector
• Output Type: PNP Normally Open (NO)
• Body Length: 70mm

Applications & compatibility

This inductive sensor is commonly employed in applications requiring non-contact detection of metallic targets, such as position sensing on robotic arms, end-of-travel detection on linear actuators, or presence checking on assembly lines. Its robust PPS housing and standard M18 form factor ensure compatibility with many existing sensor mounting systems and control architectures found in manufacturing and material handling environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS4P18KP340D or contact our technical team for cross-reference assistance with compatible XS4 series components.
