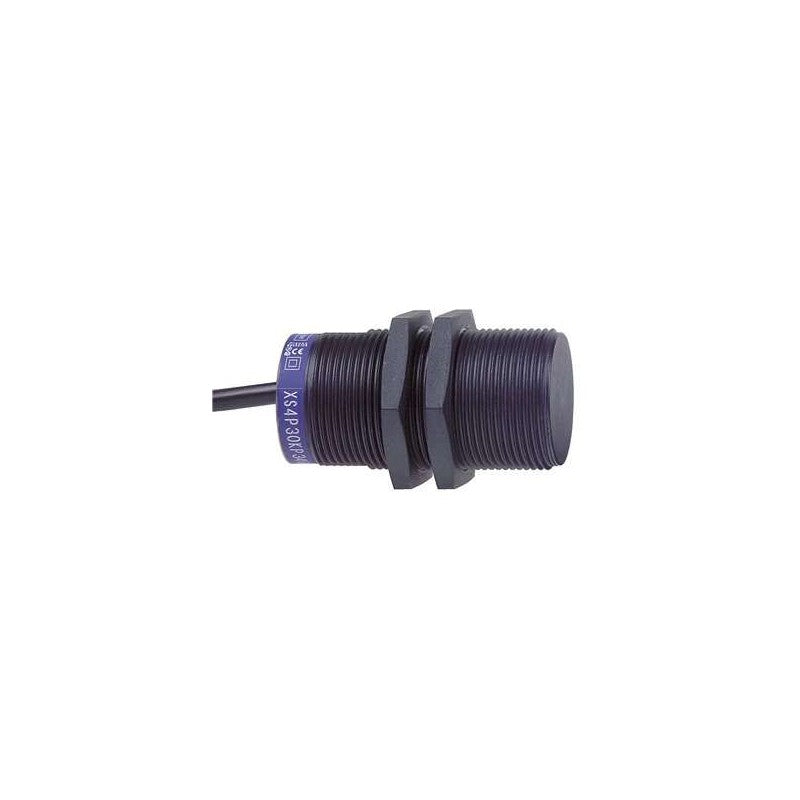

The Schneider Electric XS4P30MB230 is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS4 series, this sensor features a robust PPS housing and a standard M30 threaded body with a length of 62mm. It operates across a wide voltage range, accepting both 24 to 240VAC and 24 to 240VDC power inputs, making it suitable for diverse control panel configurations.

Technical details

• Series: XS4
• Sensing Technology: Inductive Proximity
• Housing Material: PPS (Polyphenylene Sulfide)
• Thread Size: M30
• Body Length: 62mm
• Sensing Distance (Sn): 15mm
• Operating Voltage: 24..240VAC / 24..240VDC
• Connection Type: 2-meter pre-wired cable

Applications & compatibility

This inductive sensor is commonly employed in machine building, material handling, and assembly lines where reliable detection of metal parts is critical. Its broad voltage compatibility allows for integration into both AC and DC control circuits found in packaging machinery, conveyor systems, and automated manufacturing equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS4P30MB230 or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
