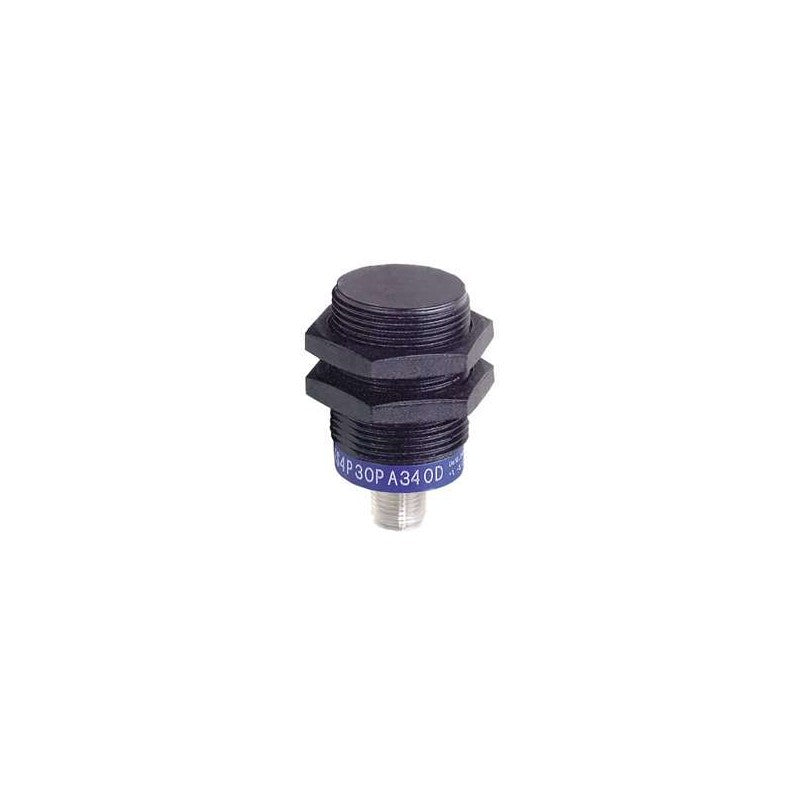

The Schneider Electric XS4P30PC410D is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS4 series, this sensor features a cylindrical M30 form factor with a threaded housing for easy mounting in various industrial environments. Its construction utilizes PPS (Polyphenylene Sulfide) for enhanced durability and resistance to chemicals and high temperatures, making it suitable for demanding applications.

Technical details

• Series: XS4
• Sensing Technology: Inductive
• Housing Style: Cylindrical M30
• Housing Length: 50mm
• Housing Material: PPS (Polyphenylene Sulfide)
• Sensing Range (Sn): 15mm
• Operating Voltage: 12-24 VDC
• Connection Type: M12 connector

Applications & compatibility

This inductive sensor is commonly employed in machine building, material handling, and assembly lines where non-contact detection of metal parts is required. It is compatible with standard 12-24 VDC control systems and can be integrated into programmable logic controller (PLC) inputs for automated process control. Typical applications include position sensing on robotic arms, presence detection on conveyor belts, and end-of-travel confirmation in automated machinery.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS4P30PC410D or contact our technical team for cross-reference assistance with compatible XS4 series components.
