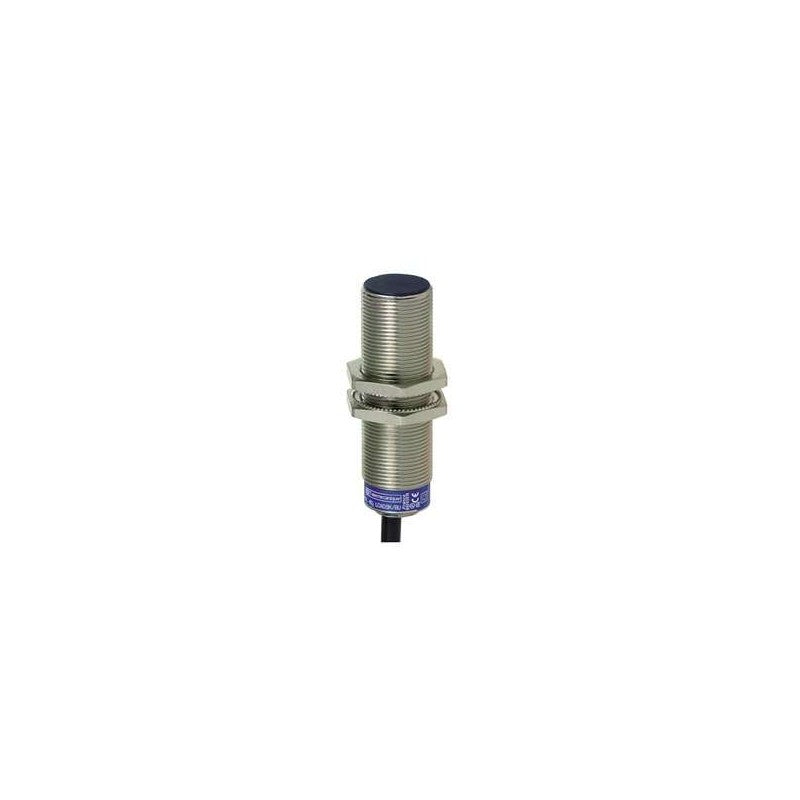

Schneider Electric's XS512BLPAL5 is an inductive proximity sensor designed for detecting metallic objects in industrial automation environments. As part of the XS5 series, this sensor features a cylindrical M12 housing with a brass construction and a sensing face positioned at the end of a 53mm long body. It operates within a voltage range of 12 to 48 VDC and offers a sensing distance of 2mm.

Technical details

• Series: XS5
• Housing Type: Cylindrical M12
• Housing Material: Brass
• Sensing Distance (Sn): 2mm
• Operating Voltage: 12-48 VDC
• Output Type: Normally Open (NO) - inferred from "BL" in part number, common for this type of sensor
• Connection: 5-meter cable
• Body Length: 53mm

Applications & compatibility

This XS5 inductive sensor is suitable for a wide array of automation tasks, including presence detection on assembly lines, position sensing in robotic cells, and object counting in material handling systems. Its robust brass construction and standard M12 form factor ensure compatibility with many existing machine designs and control panels found in manufacturing, automotive, and packaging industries.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the Schneider Electric XS512BLPAL5 or contact our technical team for cross-reference assistance with compatible XS5 series components.
