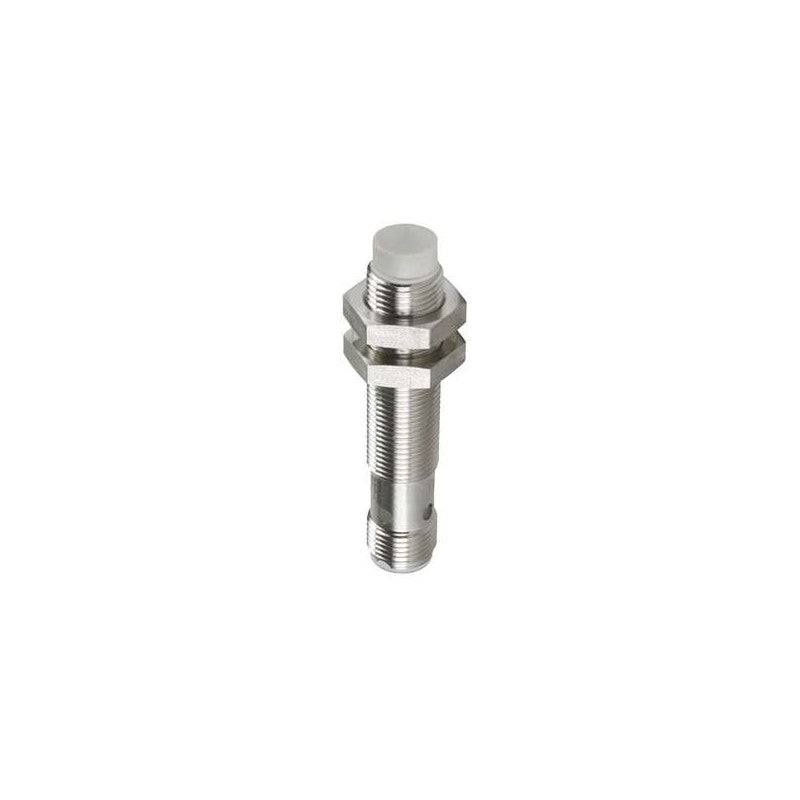

The Schneider Electric XS612B1DAM12 is an inductive proximity sensor from the XS6 series, designed for detecting metallic objects in industrial automation applications. This M12 threaded sensor features a brass housing and a sensing range of 4mm, making it suitable for close-range detection tasks within machine guarding, material handling, and assembly lines.

Technical details

• Series: XS6
• Housing Material: Brass
• Thread Size: M12
• Housing Length: 62mm
• Sensing Range (Sn): 4mm
• Operating Voltage: 12-48VDC
• Connection Type: M12 connector
• Output Type: Typically PNP Normally Open (DAM12 designation often indicates this, but verify with datasheet)

Applications & compatibility

This inductive sensor is commonly employed in automated manufacturing environments, including packaging machinery, robotic cells, and conveyor systems. Its robust brass construction and standard M12 connector ensure compatibility with a wide range of control systems and mounting hardware found in diverse industrial settings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS612B1DAM12 or contact our technical team for cross-reference assistance with compatible XS6 series components.
