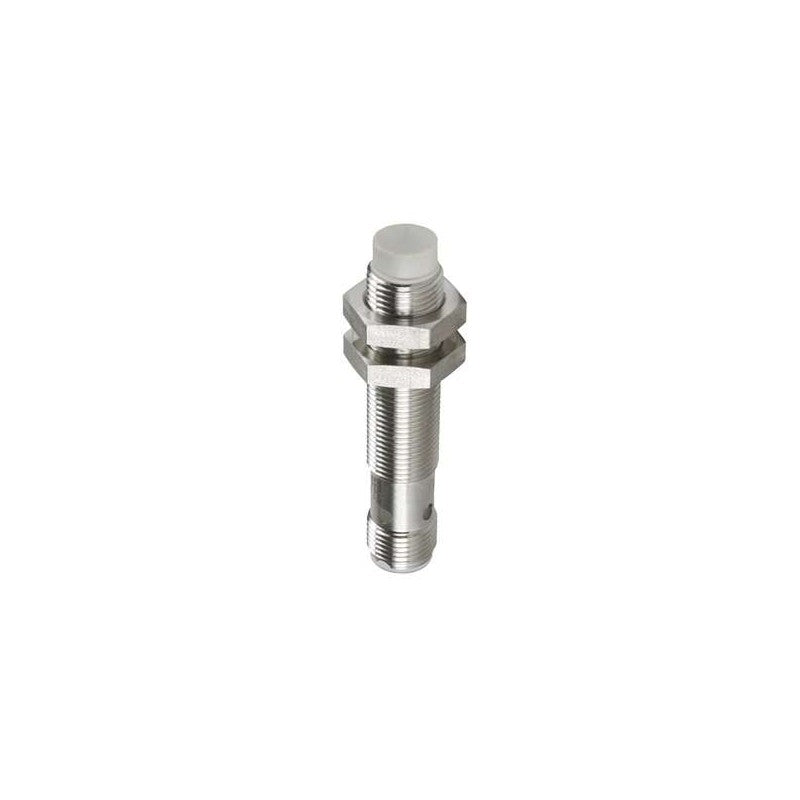

The Schneider Electric XS612B4NBM12 is an inductive proximity sensor designed for detecting metallic objects in industrial automation environments. As part of the XS6 series, this sensor features a cylindrical M12 form factor with a threaded brass housing, suitable for integration into machine frameworks and control panels. Its sensing range and operating voltage are critical specifications for ensuring proper function within automated systems.

Technical details

• Series: XS6
• Sensing Technology: Inductive
• Housing Material: Brass
• Housing Diameter: M12
• Housing Length: 66mm
• Sensing Distance (Sn): 7mm
• Operating Voltage: 12-48VDC
• Connection Type: M12 connector

Applications & compatibility

This inductive sensor is commonly employed in applications requiring non-contact detection of metal parts, such as position sensing on assembly lines, presence detection in material handling systems, and end-of-travel indication on actuators. Its robust brass construction and standard M12 connection make it compatible with a wide range of industrial control systems and mounting hardware.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS612B4NBM12 or contact our technical team for cross-reference assistance with compatible XS6 series components.
