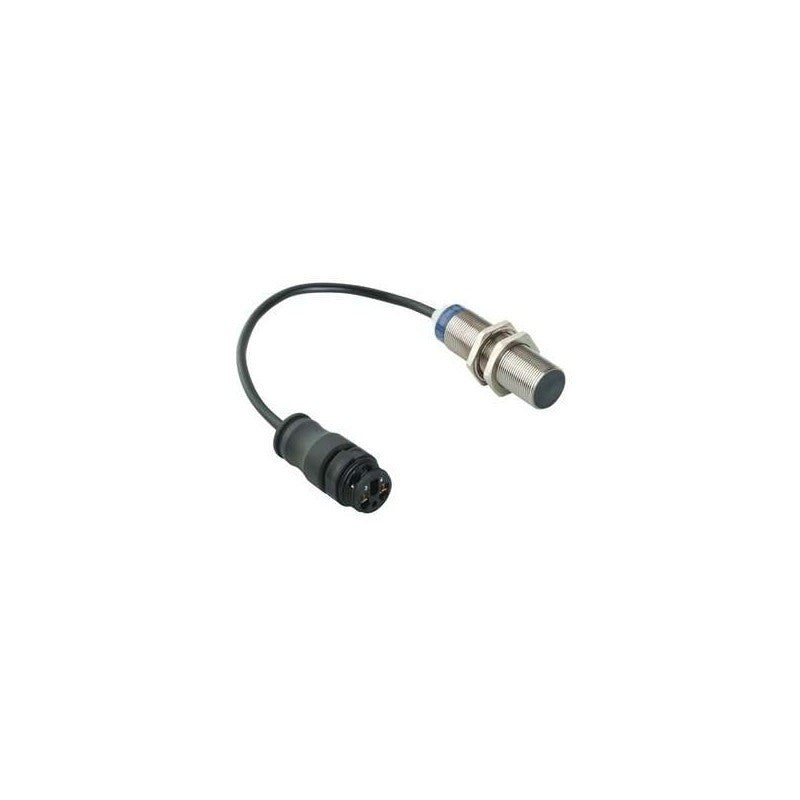

The Schneider Electric XS618B1PAL01B is an inductive proximity sensor designed for detecting metallic objects in industrial environments. As part of the XS6 series, this sensor features a cylindrical M18 form factor with a standard sensing face and a threaded brass housing for robust mounting. It operates within a specified DC voltage range and offers a defined sensing distance, making it suitable for various automation tasks.

Technical details

• Series: XS6
• Sensor Type: Inductive Proximity Sensor
• Housing Material: Brass
• Housing Diameter: M18
• Housing Length: 62mm
• Sensing Distance (Sn): 8mm
• Operating Voltage: 12-48VDC
• Connection Type: Terminal with 0.15m pre-wired cable

Applications & compatibility

This inductive sensor is commonly employed in machine building, material handling, and assembly lines where non-contact detection of metal parts is required. Its M18 form factor and brass construction ensure compatibility with standard mounting hardware and suitability for environments with moderate exposure to industrial fluids. It can be integrated into control systems requiring discrete digital inputs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS618B1PAL01B or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
