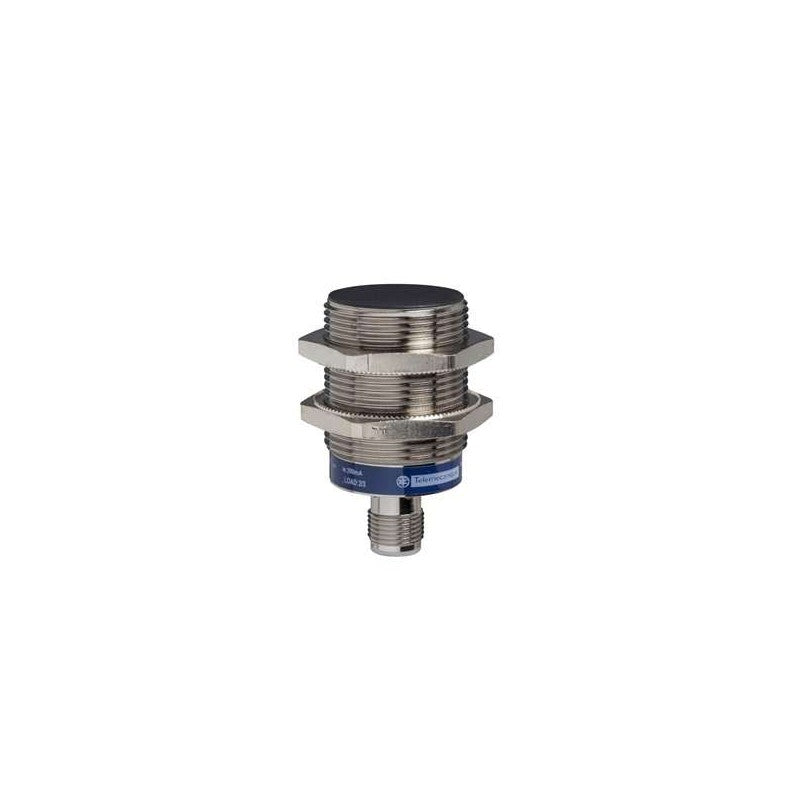

The Schneider Electric XS630B1NBM12 is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS6 M30 series, this sensor features a cylindrical brass housing with a threaded body for easy mounting in various industrial environments. Its sensing range and voltage compatibility make it suitable for integration into control circuits on manufacturing lines.

Technical details

• Series: XS6 M30
• Housing Material: Brass
• Housing Diameter: M30
• Housing Length: 74mm
• Sensing Range (Sn): 15mm
• Operating Voltage: 12-48VDC
• Connection Type: M12 connector
• Output Type: Normally Closed (NC)

Applications & compatibility

This inductive sensor is commonly employed in applications requiring non-contact detection of metal parts, such as position sensing on robotic arms, end-of-travel detection on pneumatic cylinders, or presence checking on conveyor systems. It is compatible with standard DC control voltages and can be integrated into PLC-based automation systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS630B1NBM12 or contact our technical team for cross-reference assistance with compatible Schneider Electric proximity sensor components.
