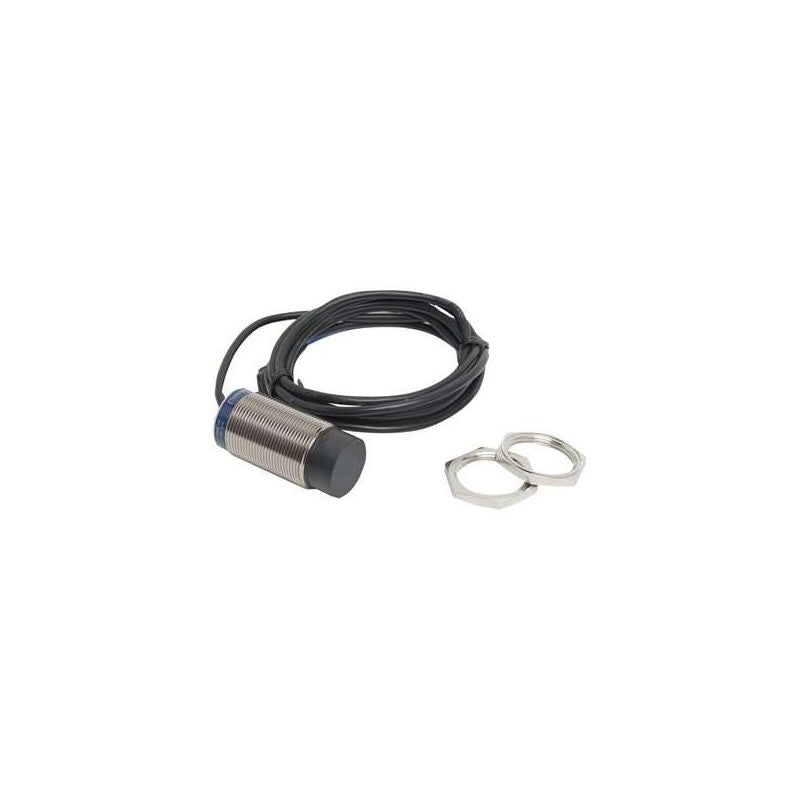

Schneider Electric's XS630B4MAL2 is an inductive proximity sensor designed for detecting metallic objects in industrial environments. As part of the XS6 series, this sensor features a M30 threaded brass housing and a sensing distance of 22mm. It operates across a wide voltage range, accepting both 24 to 240VAC and 24 to 240VDC power inputs, making it suitable for diverse control systems.

Technical details

• Series: XS6
• Housing Material: Brass
• Housing Thread Size: M30
• Housing Length: 63mm
• Sensing Distance (Sn): 22mm
• Operating Voltage: 24...240VAC / 24...240VDC
• Output Type: 4-wire, Normally Open (NO) and Normally Closed (NC)
• Connection: 2-meter pre-wired cable

Applications & compatibility

This inductive sensor is commonly employed in automation systems for presence detection and object sensing on production lines. Its robust brass construction and wide voltage compatibility make it ideal for use in machine tool applications, material handling equipment, packaging machinery, and general factory automation where reliable detection of metallic targets is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS630B4MAL2 or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
