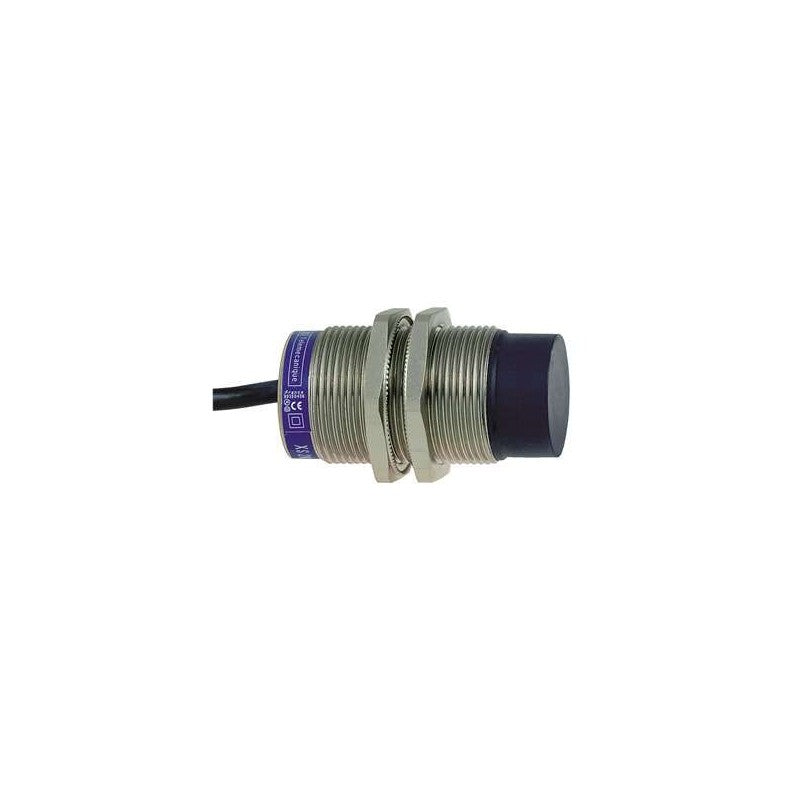

The Schneider Electric XS630B4PAL2 is an inductive proximity sensor designed for detecting metallic objects in automated systems. As part of the XS6 M30 series, this sensor features a cylindrical brass housing with a threaded M30 body and a standard sensing face. It operates within a 12 to 48 VDC voltage range, making it suitable for a wide array of DC-powered industrial control circuits.

Technical details

• Series: XS6 M30
• Housing Material: Brass
• Housing Diameter: M30
• Housing Length: 63mm
• Sensing Technology: Inductive
• Sensing Range (Sn): 22mm
• Operating Voltage: 12-48 VDC
• Connection Type: 2-meter cable

Applications & compatibility

This inductive sensor is commonly employed in machine building, material handling, and assembly lines where non-contact detection of metal parts is required. Its robust brass construction and standard sensing range make it suitable for integration into packaging machinery, robotic cells, and conveyor systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS630B4PAL2 or contact our technical team for cross-reference assistance with compatible Schneider Electric proximity sensor components.
