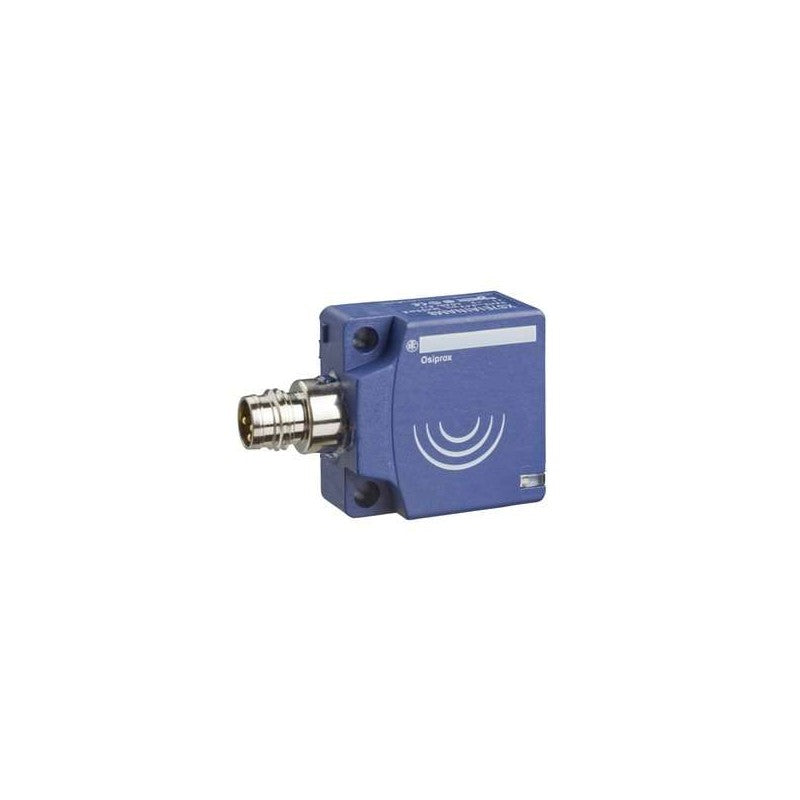

The Schneider Electric XS7E1A1PBM8 is an inductive proximity sensor designed for detecting metallic objects in industrial automation environments. As part of the XS7 series, this sensor features a compact PBT housing and a standard M8 connector for straightforward integration into control systems. Its robust construction and reliable sensing capabilities make it suitable for a wide range of machine building and automation tasks.

Technical details

• Series: XS7
• Sensing Technology: Inductive
• Housing Material: PBT (Polybutylene Terephthalate)
• Housing Dimensions: 26 x 26 x 13 mm
• Sensing Distance (Sn): 10 mm
• Operating Voltage: 12-24 VDC
• Connection Type: M8 connector
• Output Type: PNP Normally Open (PBM8 indicates PNP, Normally Open, M8 connector)

Applications & compatibility

This inductive sensor is commonly employed in applications requiring non-contact detection of metal parts, such as position sensing on assembly lines, presence detection in material handling systems, and end-of-travel indication on actuators. Its 10mm sensing range and 12-24VDC operating voltage make it compatible with a broad spectrum of PLC inputs and control circuits found in packaging machinery, robotics, and general manufacturing equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS7E1A1PBM8 or contact our technical team for cross-reference assistance with compatible XS7 series components.
