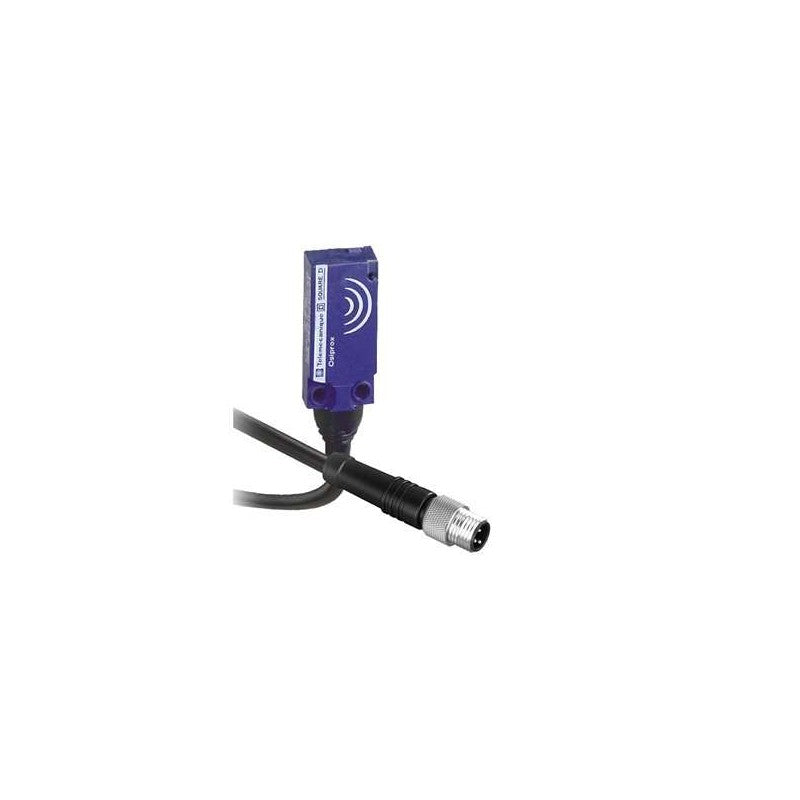

The Schneider Electric XS7F1A1PAL01M8 is an inductive proximity sensor designed for detecting metallic objects in automated systems. This sensor is part of the XS7 series, known for its robust construction and reliable performance in industrial environments. It features a compact, rectangular form factor suitable for space-constrained applications.

Technical details

• Series: XS7
• Sensing Technology: Inductive
• Detection Range (Sn): 5 mm
• Output Type: PNP (indicated by 'P' in part number)
• Switching Function: Normally Open (indicated by 'A' in part number)
• Connection Type: M8 connector
• Cable Length: 0.15 meters
• Operating Voltage: 12-24 VDC
• Housing Material: PBT (Polybutylene Terephthalate)
• Dimensions: 15 mm x 32 mm x 8 mm

Applications & compatibility

This inductive sensor is commonly employed in machine building, assembly lines, and material handling systems where non-contact detection of metal parts is required. Its specifications make it suitable for integration into control systems utilizing 12-24 VDC power supplies and M8 connector interfaces, often found in robotics, packaging machinery, and automated assembly equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS7F1A1PAL01M8 or contact our technical team for cross-reference assistance with compatible Schneider Electric XS7 series components.
