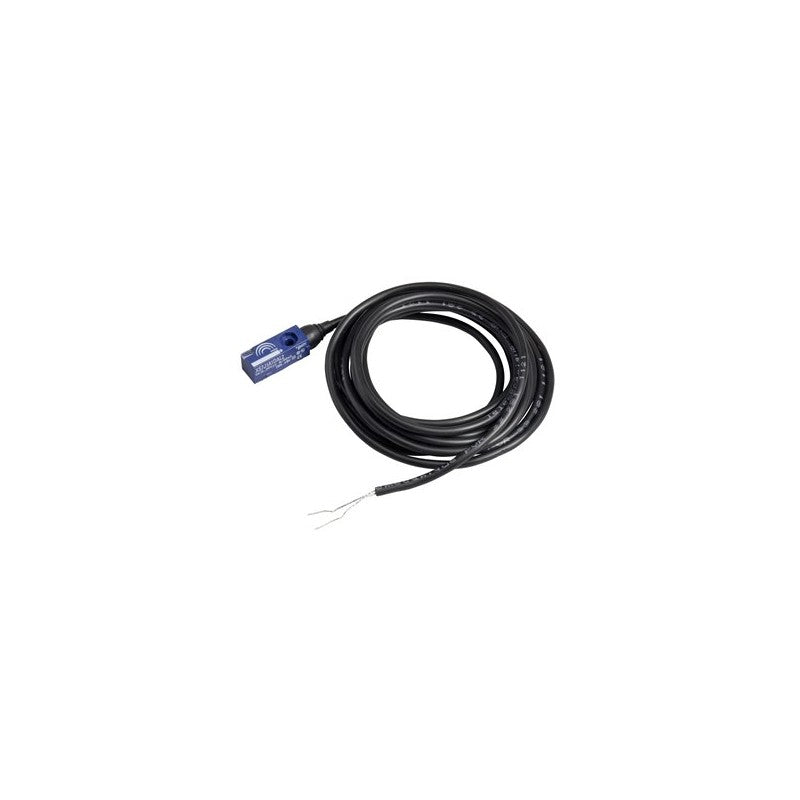

The Schneider Electric XS7J1A1NBL2 is a proximity sensor designed for detecting the presence of metallic objects in automated systems. As part of the XS7 series, this sensor utilizes inductive sensing technology to provide reliable, non-contact detection. It is commonly employed in machine guarding, material handling, and assembly line applications where precise object detection is critical for operational control and safety.

Technical details

• Sensing Technology: Inductive
• Model Series: XS7
• Housing Material: PBT (Polybutylene Terephthalate)
• Sensing Range (Sn): 2.5 mm
• Operating Voltage: 12-24 VDC
• Output Type: Normally Closed (NC)
• Connection Type: 2-meter cable
• Dimensions: 8 mm x 22 mm x 8 mm

Applications & compatibility

This inductive sensor is suitable for integration into a wide range of industrial automation control systems. Its compact form factor and robust PBT housing make it ideal for use in environments found on packaging machinery, robotic cells, and automated storage and retrieval systems. The 12-24 VDC operating voltage ensures compatibility with most standard industrial control power supplies.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the XS7J1A1NBL2 or contact our technical team for cross-reference assistance with compatible XS7 series components.
